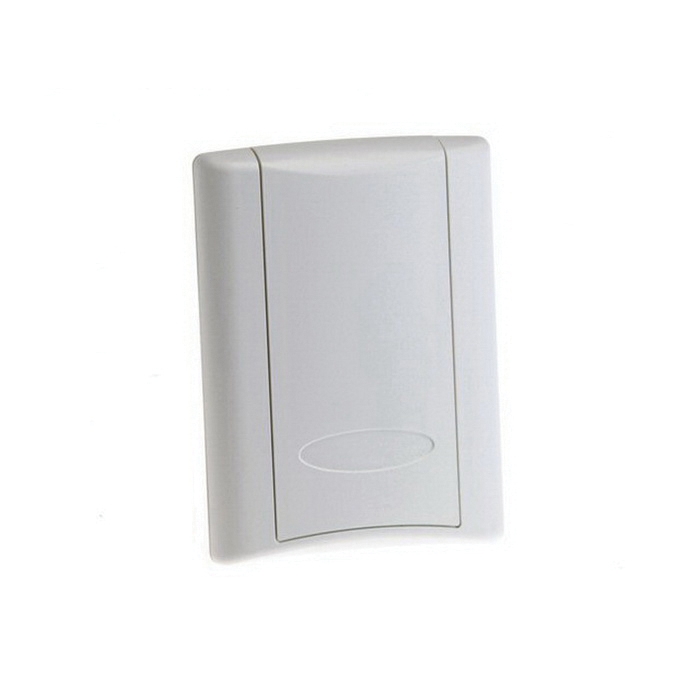

Veris HWX3XSTN Wall Humidity Sensor

Deluxe Cloud White +/-3% Accuracy 1800 Ohm TAC Thermistor Wall Mount Humidity and Temperature Sensor

  • Brand Name: Veris
  • Veris Part#: HWX3XSTN
Application Zone      :      Living Space
Application      :      Wall
Brand      :      Veris
Color      :      Cloud White
Dimension Depth      :      1.2" (30 mm)
Dimension Height      :      4.8" (122 mm)
Dimension Width      :      3.5" (89 mm)
Display Type      :      None
Electrical Wiring Size      :      24 - 18 AWG (0.22 - 0.75 mm²)
Enclosure Material      :      ABS Plastic
Feature Level      :      Deluxe
Humidity Calibration Certificate      :      None
Humidity Measurement Accuracy      :      ±3%
Humidity Measurement Drift      :      ±1% @ 68 °F (20 °C) annually for 2 years
Humidity Measurement Range      :      0 - 100% RH
Humidity Measurement Resolution      :      0.1% RH
Humidity Sensor Type      :      Thin film capacitive, replaceable
Measurement Type      :      Humidity | Temperature
Mounting      :      Wall
Operating Humidity      :      0-100% RH, non-condensing (will recover from saturation)
Operating Temperature      :      50 - 95 °F (10 - 35 °C)
Output Specifications      :      4 - 20 mA | 0 - 5 V | 0 - 10 V
Outputs      :      Analog output | Resistive temperature output
Override      :      No
Product Certification      :      CE
Product Type      :      Sensor
Range      :      HW
Setpoint      :      No
Supply Voltage AC Nominal      :      24 VAC
Supply Voltage DC Range      :      12 - 30 VDC
Temperature Calibration Certificate      :      None
Temperature Measurement Accuracy      :      ±0.5 °F (±0.25 °C) @ 77 °F (25 °C)
Temperature Measurement Range      :      32 - 122 °F (0 - 50 °C)
Temperature Sensor Type      :      1.8k Ohm Thermistor
Warranty      :      5 years (1 year on replaceable RH element)

HW series deluxe humidity transmitters provide an ideal solution for measuring relative humidity in all conditions. All devices are equipped with a thin-film capacitive sensor that is easily replaceable in the field. The wall-mounted HW model features a low-profile housing. All Deluxe models come with a standard 5 years warranty.

  • Sensor element - thin-film capacitive sensor element recovers from 100% saturation
  • Interchangeable element - fully interchangeable element to 3% accuracy no calibration
  • Flexibility - polarity insensitive, 2-wire 4 to 20 mA or 3-wire 0 to 5/0 to 10 VDC versions flexible systems compatibility save time in the field, stock fewer devices
  • Field replaceable - replace element in the field maintain accuracy and minimize downtime
  • On-board memory - HS element is microprocessor profiled with on-board nonvolatile memory
  • Digitally profiled thin-film capacitive (32-bit mathematics) US Patent 5,844,138 HS element, this sensing element has a 1 year warranty
