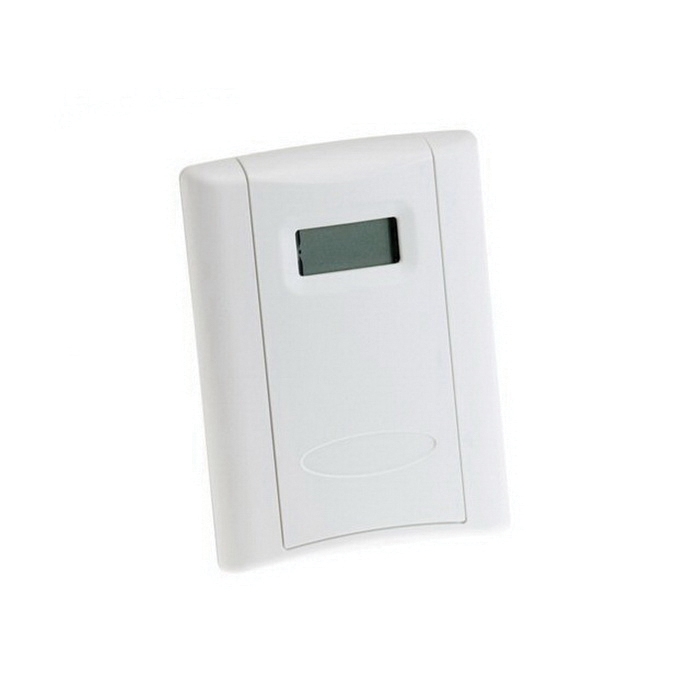

Veris TWLW51 Wall Temperature Sensor
Cloud White ABS Plastic 10 kOhm T2 High Accuracy Thermistor NTC Temperature Sensor with LCD Display, 1-Point Calibration
- Brand Name: Veris
- Veris Part#: TWLW51
-
WARNING:
| Application Zone | : | Living Space |
| Application | : | Wall |
| Brand | : | Veris |
| Color | : | Cloud White |
| Dimension Depth | : | 1.2" (30 mm) |
| Dimension Height | : | 4.8" (122 mm) |
| Dimension Width | : | 3.5" (89 mm) |
| Display Size | : | 1.2" x 0.6" (30.5 mm x 14 mm) |
| Display Type | : | LCD |
| Electrical Wiring Size | : | 24 - 18 AWG (0.22 - 0.75 mm²) |
| Enclosure Material | : | ABS Plastic |
| Measurement Type | : | Temperature |
| Model | : | TWLW51 |
| Mounting | : | Wall |
| Operating Temperature | : | 32 - 122 °F (0 - 50 °C) |
| Outputs | : | Resistive output |
| Override | : | Yes |
| Product Certification | : | CE |
| Product Type | : | Sensor |
| Range | : | TW |
| Setpoint | : | Yes |
| Supply Voltage AC Nominal | : | 24 VAC |
| Supply Voltage DC Range | : | 12 - 30 VDC |
| Temperature Calibration Certificate | : | 1 pt |
| Temperature Measurement Accuracy | : | ±0.4 °F (±0.2 °C) under 68 °F (20 °C), ±0.2 °F (±0.1 °C) above |
| Temperature Measurement Range | : | 32 - 158 °F (0 - 70 °C) |
| Temperature Sensor Type | : | 10k Ohm Type 2 Thermistor - High Accuracy |
| Warranty | : | 5 years |
These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment.
- Wall mount - low-profile housing
- Quick installation - reduced downtime for deployment
- 10 kOhm setpoint with push button override
- 1-point calibration validation
- Solid-state, integrated circuit transmitter
CE Declaration
