Veris AA04 Temperature Sensor Accessory

12 to 30 VDC Remote Display, 4 to 20 mA

  • Brand Name: Veris
  • Veris Part#: AA04
  • Est. Shipping Date: loading
Application Zone      :      Plant Room | Living Space
Application      :      Display
Brand      :      Veris
Color      :      Black
Dimension Depth      :      1.2" (28 mm)
Dimension Height      :      2.5" (62 mm)
Dimension Width      :      4.3" (109 mm)
Electrical Wiring      :      2-wires (loop-powered)
Enclosure Material      :      Epoxy encapsulated
Input Specifications      :      4 - 20 mA
Inputs      :      Analog input
Model      :      AA04
Mounting      :      Panel | Wall
Operating Current      :      30 mA
Output Specifications      :      4 - 20 mA
Outputs      :      Analog output
Product Type      :      Accessory
Supply Voltage DC Range      :      12 - 30 VDC

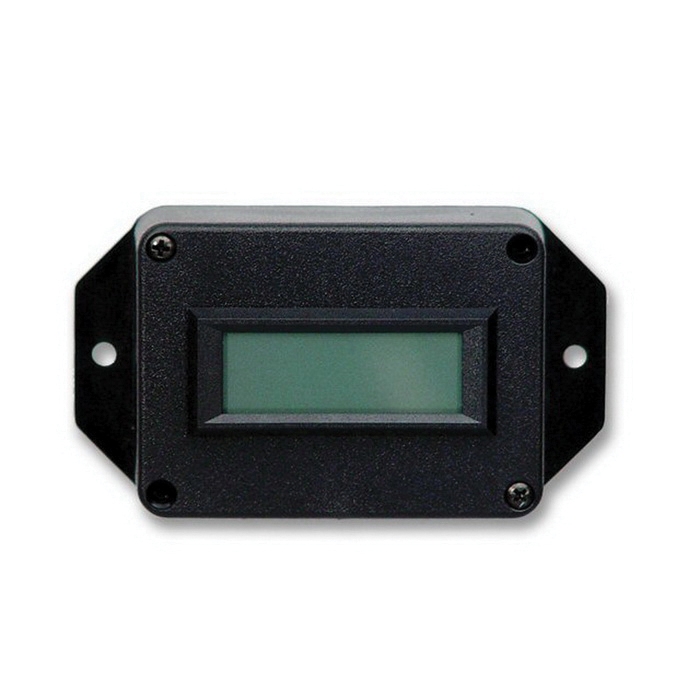

The AA04 remote display converts a standard 4 to 20 mA output from an environmental sensor into a convenient digital readout.

  • Analog, 4 to 20 mA, scaled 0 to 100%, polarity sensitive output
  • pdfDatasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/veris_full_catalog.pdf
  • pdfInstallation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/aa04_i0k2.pdf
