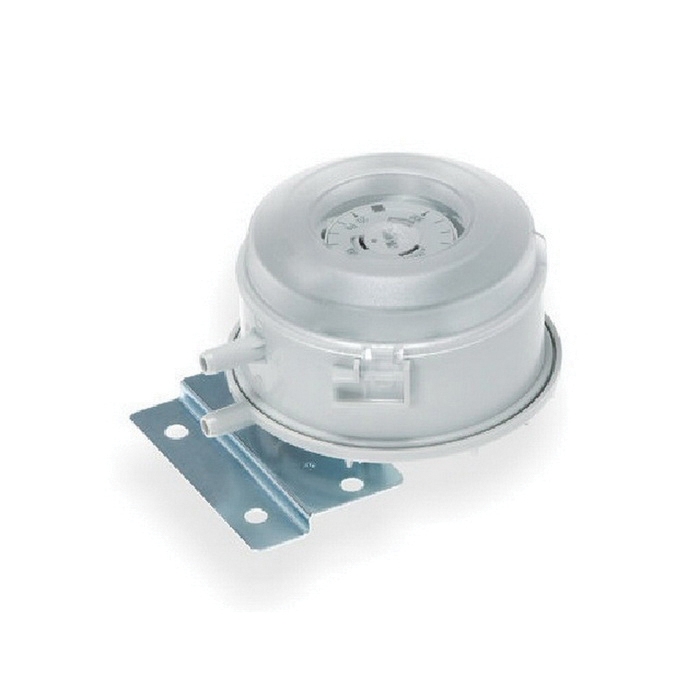

Veris PAS01 Pressure Switch

Dry Media Differential Air Pressure Switch, 0.08 to 1.2 in-WC

  • Brand Name: Veris
  • Veris Part#: PAS01
  • Est. Shipping Date: loading
Application Zone      :      Plant Room
Application      :      Fan Monitoring | Filter Monitoring
Brand      :      Veris
Dimension Depth      :      3.5" (88 mm)
Dimension Height      :      2.1" (52 mm)
Dimension Width      :      3.6" (91 mm)
Display Type      :      None
Electrical Wiring      :      3-wires
Enclosure Material      :      PC 10% GF
Fitting Material      :      PC 10% GF
Fitting Size      :      0.24" (6.2 mm)
Fitting Type      :      Male
IP Protection      :      IP54 (NEMA 3)
Measurement Type      :      Differential Pressure
Medium      :      Air | Gas
Model      :      PAS01
Mounting      :      Duct | Panel
Operating Temperature      :      -22 - 185 °F (-30 - 85 °C)
Output Specifications      :      N.C. 5 A @ 250 VAC
Outputs      :      Switch output
Pressure Measurement Range      :      0.08 - 1.2"WC (20 - 300 Pa)
Product Certification      :      CE
Product Type      :      Sensor
Range      :      PAS
Warranty      :      5 years

This series of four PASxx differential air flow switches are intended for use in air handling systems for the monitoring of air ducts, filters and fans. The enclosure is plastic with a rating of IP54. A set-point adjustment is provided under the clip-on clear plastic cover. Supplied complete with mounting adaptor ring, two straight duct probes and a 6 ft length of clear tubing.

  • Case geometry allows easy cable lead-in
  • High adjustment accuracy through individual laser etched scale
  • Cable strain relief integrated in PG11 (DIN 40430)
  • User-friendly snap cover
  • Stable switching points - long-term stability of switching points through trapezoidal bead diaphragm
  • Case: PC 10% GF, cover: PC, diaphragm: silicone LSR tempered 200 deg C, free of gas emissions materials in contact with the medium
  • Mechanical greater than 106 switching cycles service life
  • Screw terminals cable gland type PG11 (DIN 40430) complete with cable strain relief electrical connection
  • Air and neutral gases medium
