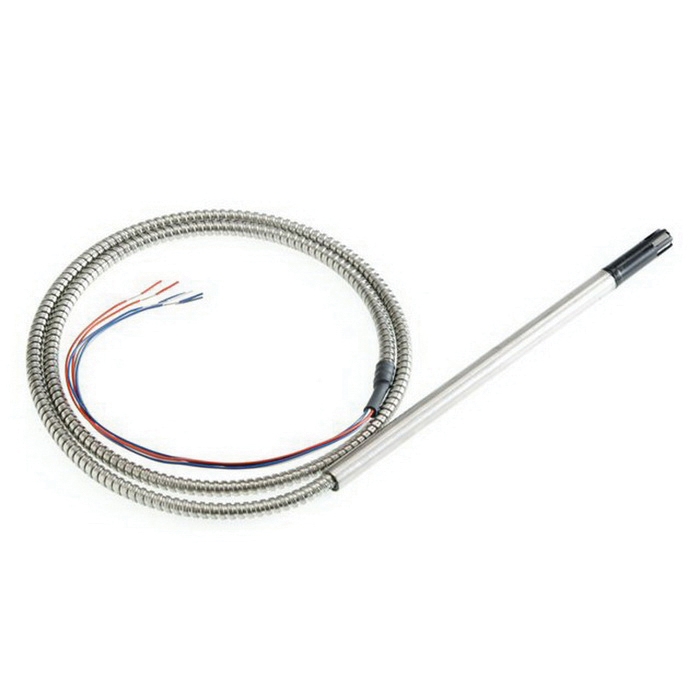

Veris HP3XVSX Pendant Humidity Sensor

Stainless Steel Probe +/-3% Accuracy 0 to 5/0 to 10 VDC Specialty Pendant Humidity Sensor

  • Brand Name: Veris
  • Veris Part#: HP3XVSX
  • Est. Shipping Date: loading
Application Zone      :      Plant Room
Application      :      Pendant Probe
Brand      :      Veris
Color      :      Stainless Steel
Dimension Probe Diameter      :      0.5" (13 mm)
Dimension Probe Length      :      10" (254 mm)
Electrical Wiring Size      :      22 AWG (0.32 mm²)
Feature Level      :      Deluxe
Humidity Calibration Certificate      :      None
Humidity Measurement Accuracy      :      ±3%
Humidity Measurement Drift      :      ±1% @ 68 °F (20 °C) annually for 2 years
Humidity Measurement Range      :      0 - 100% RH
Humidity Measurement Resolution      :      0.1% RH
Humidity Sensor Type      :      Thin film capacitive, replaceable
Measurement Type      :      Humidity
Mounting      :      Pendant
Operating Humidity      :      0-100% RH, non-condensing (will recover from saturation)
Operating Temperature      :      -40 - 122 °F (-40 - 50 °C)
Output Specifications      :      0 - 5 V | 0 - 10 V
Outputs      :      Analog output
Product Certification      :      CE
Product Type      :      Sensor
Range      :      HP
Supply Voltage AC Nominal      :      24 VAC
Supply Voltage DC Range      :      12 - 30 VDC
Temperature Sensor Type      :      None
Warranty      :      5 years (1 year on replaceable RH element)

HP series probe type humidity transmitters are easy to install and exceptionally accurate. Their long-term stability and trouble-free serviceability make them among the best in the industry. The electronics are embedded inside the probe, protecting them from condensation-related failures. Field replacement of the sensor element is a snap with the patented removable sensor, lowering costs and reducing downtime.

  • Sensor element - thin-film capacitive sensor element recovers from 100% saturation
  • Corrosion resistant - electronics are encapsulated in stainless steel probe to resist corrosion
  • Interchangeable - fully interchangeable element to 3% accuracy no calibration
  • Flexible - pendant versions for application flexibility
  • Compatibility - polarity insensitive 3-wire 0 to 5/0 to 10 VDC versions flexible systems compatibility
  • RH pendant enclosure
  • 3-wire, observe polarity
  • Digitally profiled thin-film capacitive (32-bit mathematics) US Patent 5,844,138 HS element, this sensing element has a 1 year warranty
