Dimensions
|
:
|
4.25" (108 mm) W x 4.10" (105 mm) L x 1.0" (26 mm)
|
Number of Devices Supported
|
:
|
Pulse: 4
|
Operating Temperature
|
:
|
-30 - 70 deg C
|
Supply Power
|
:
|
24 VDC
|

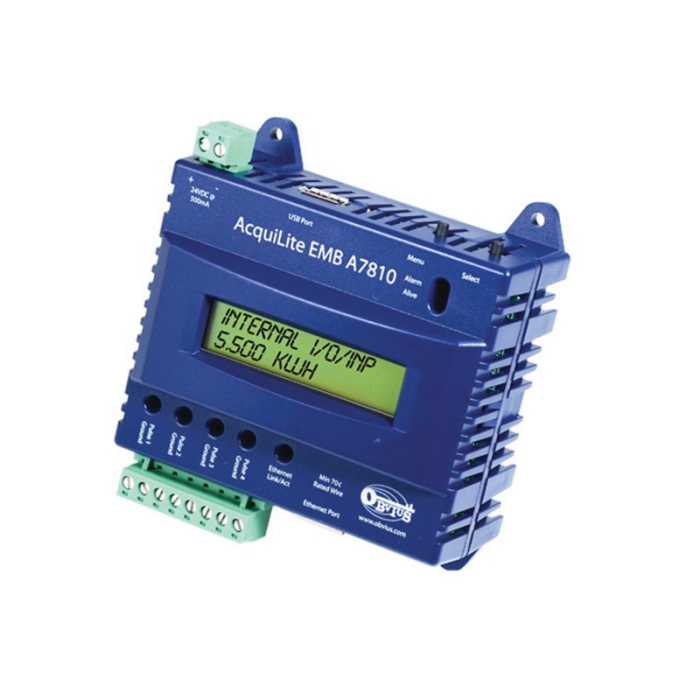

The A7810 AcquiLite data acquisition server for embedded applications allows users to collect energy data from meters and environmental sensors and send it via Modbus communication protocol (wired or wireless using the H8830) to IP-based applications. No software is required. Operation is plug-and-play, and information can be accessed using any web browser. The A7810 supports four pulse inputs. The compact housing and industrial temperature range make the A7810 ideal for embedded applications. Reduce development time and speed up integration by collecting and distributing energy data directly from your equipment.
- Track data in real time - provides the right information for trending, planning, and identifying waste
- Industrial temperature range (-30 to 70 deg C), perfect for embedded applications, speeds up development and integration of energy data
- DIN rail mounting - easy installation
- Alarm notification - for data points above or below target levels, quick notification for optimal performance maintenance
- Compatible with multiple communication protocols, push or pull data to energy dashboards and software applications for easy system integration
- RJ45 Ethernet isolated to 1500 VDC from main board (power and pulse inputs not isolated) isolation
- Ethernet, pulse (x4), power, alarm LEDs
- 2 x 16 LCD character, two push buttons console
- 1 to 60 min, user selectable (default 15 min) interval recording
- 4 inputs, dry contact, standard or KYZ, closure threshold 100 Ohm to 2.5 kOhm user selectable, maximum rate 10 Hz, minimum width 50 ms pulse inputs
- RJ45 10/100 Ethernet, auto polarity LAN
-
