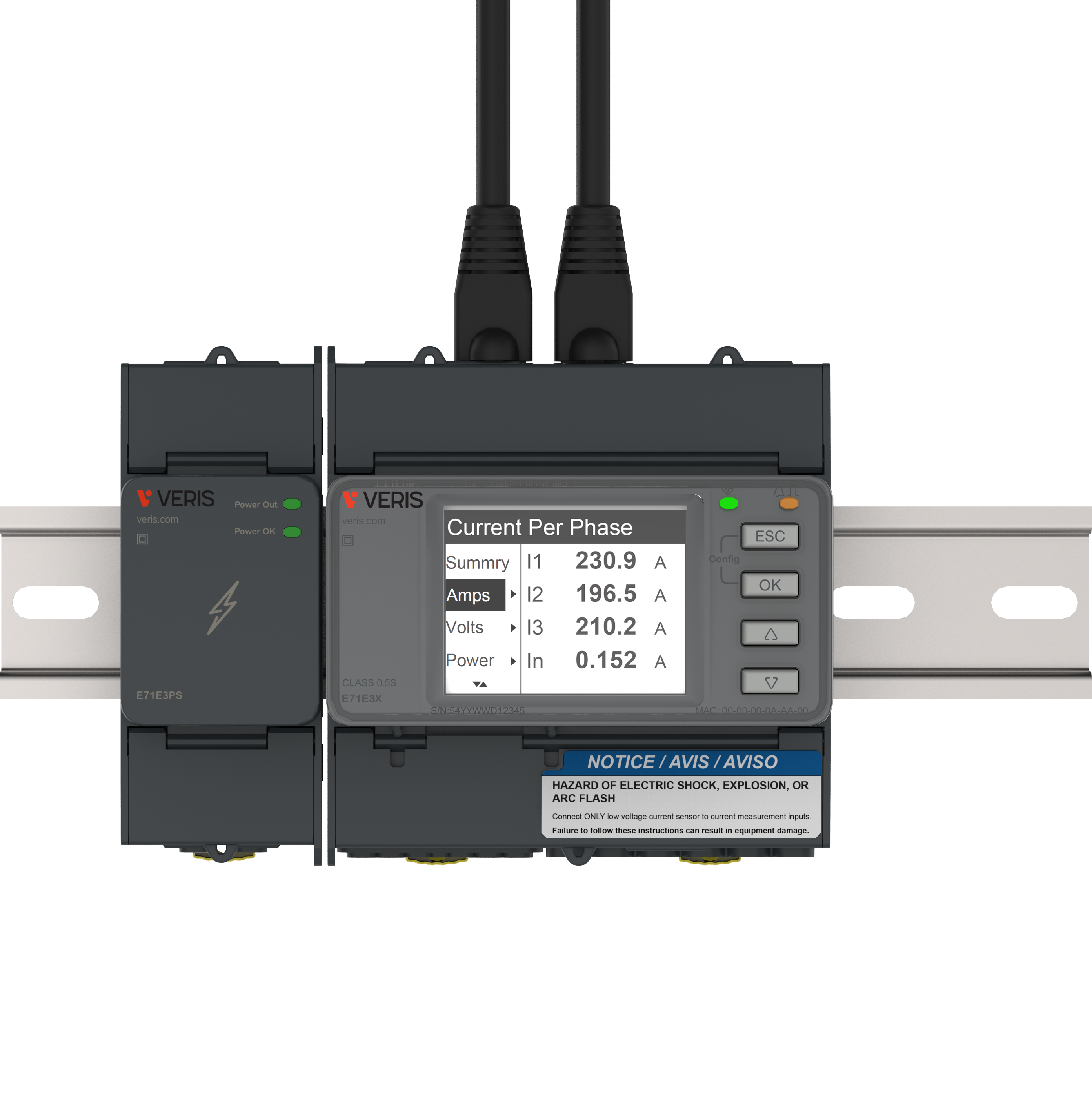

Veris E71E3 Advanced Power Meter

Ethernet BACnet/Modbus Power Meter with Logging

  • Brand Name: Veris
  • Veris Part#: E71E3
  • Est. Shipping Date: loading
Accuracy      :      +/- 0.5%
Communication      :      BACnet/IP, ModbusTCP
Control Power Voltage      :      24 VDC
Dimensions      :      4.96" (126 mm) W x 2.8" (71 mm) W x 3.74" (95 mm)
Display Type      :      LCD
Environmental Conditions      :      Humidity Range: 5%-95% RH Non-Condensing; Storage Temperature: -40 to 185 °F; Altitude of Operation: 3000 m
Frequency Rating      :      50 - 60 Hz
Metering Product Family      :      E71 Power Meter
Monitored Voltage Range      :      90-600 VAC
Mounting      :      Din-Rail
Operating Temperature      :      -13 - 158 °F
Product Type      :      Enhanced Power and Energy Meter
Range      :      E71

The E71 Series is a compact DIN mounted meter that combines performance with affordability. The E71E3 is compatible with Veris LVCTs and includes a 24Vdc power supply supporting up to 600Vac. The meter provides accurate three phase electrical monitoring to meet 0.5S accuracy standards. BACnet/IP, Modbus TCP/IP and SNMP come native on all models, with BTL certification and industry standard Modbus registers. Dual Ethernet ports allow Ethernet daisy chains, adding flexibility for simplified installations. Two digital inputs support status monitoring, pulse counting, multi tariff and partial resets, along with one relay output for alarm notification.

  • Modbus and BACnet Ethernet communications
  • Onboard logging up to 3 years
  • Bi-directional monitoring
  • Compatible with Veris low voltage CTs
