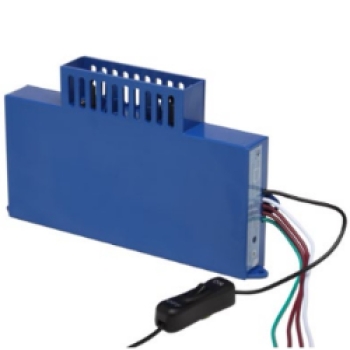

GPS-FC24-AC Duct Ionization System

Ionization System, Internal Duct, LCD ,2400CFM/6 Ton

  • Brand Name: Veris
  • Veris Part#: GPS-FC24-AC
  • Est. Shipping Date: loading

The GPS-FC24-AC is an auto-cleaning, no maintenance, needlepoint bipolar ionization system designed to handle up to 2,400 CFM. The unit is designed for multiple mounting options including fan inlet, interior duct wall or interior duct floor.

Air Capacity      :      2400 CFM / 6 tons per unit. Multiple units can be used to meet airflow requirements.
Display      :      Single LED indicates relay status and is used for adjustment of auto-cleaning frequency
Input Frequency Range      :      50/60 Hz
Input Power      :      24 to 240 Vac
Ion Output      :      >300 million ions/sec
Operating Temperature      :      -20 to 200 °F (-29 to 93 °C)
Power Consumption      :      8 Watts
Relay Contact Ratings      :      250 Vac / 1A, N.O. (close when powered with no faults)

Universal voltage input, in-line On/Off switch, programmable autocleaning cycle, operation status LED, integral Building Automation System (BAS) alarm contacts, magnets for ease of installation and replaceable carbon fiber brush emitters.

  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/GPS_d0324.pdf
