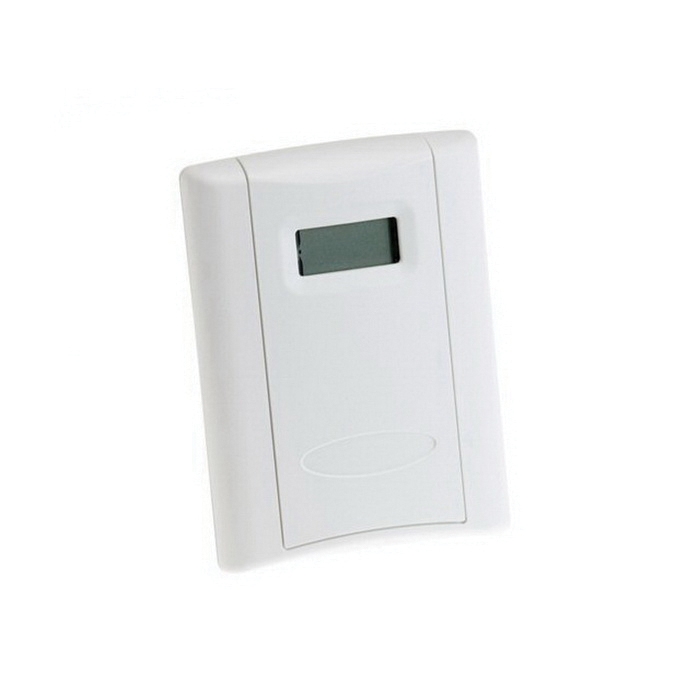

Veris TWLPXXX Wall Temperature Sensor
Cloud White High-Impact ABS Plastic Deluxe Temperature Sensor with LCD Display
- Brand Name: Veris
- Veris Part#: TWLPXXX
-
WARNING:
| Application Zone | : | Living Space |
| Application | : | Wall |
| Brand | : | Veris |
| Color | : | Cloud White |
| Dimension Depth | : | 1.2" (30 mm) |
| Dimension Height | : | 4.8" (122 mm) |
| Dimension Width | : | 3.5" (89 mm) |
| Display Size | : | 1.2" x 0.6" (30.5 mm x 14 mm) |
| Display Type | : | LCD |
| Electrical Wiring Size | : | 24 - 18 AWG (0.22 - 0.75 mm²) |
| Enclosure Material | : | ABS Plastic |
| Measurement Type | : | Temperature |
| Model | : | TWLPXXX |
| Mounting | : | Wall |
| Operating Temperature | : | 32 - 122 °F (0 - 50 °C) |
| Outputs | : | Protocol Communication |
| Override | : | No |
| Product Certification | : | CE |
| Product Type | : | Sensor |
| Range | : | TWxP |
| Setpoint | : | No |
| Supply Voltage AC Nominal | : | 24 VAC |
| Supply Voltage DC Range | : | 12 - 30 VDC |
| Temperature Calibration Certificate | : | None |
| Temperature Measurement Accuracy | : | ±0.9 °F (±0.5 °C) |
| Temperature Measurement Range | : | 50 - 95 °F (10 - 35 °C) |
| Temperature Sensor Type | : | Temperature Transmitter |
| Warranty | : | 5 years |
The TWLP series features embedded BACnet and Modbus communication protocols to communicate temperature readings to a building automation system controller.
- Embedded BACnet and Modbus communication protocols, provides ease of integration
- Network configuration - eliminates the costs of home run wiring and analog inputs required by traditional sensors
- Configurable to multiple baud rates, ensures network compatibility
- Solid-state, integrated circuit sensor
CE Declaration
