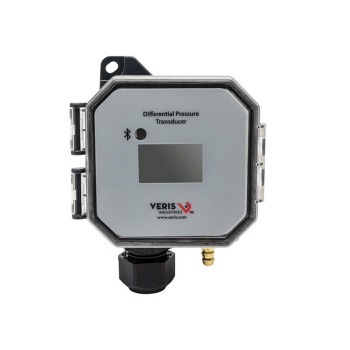

Veris PX3DLX02 Dry Differential Pressure Sensor

Bluetooth Duct Enclosure Dry Media Differential Pressure/Air Velocity Transducer with LCD Display, 1 to 10 in-WG

  • Brand Name: Veris
  • Veris Part#: PX3DLX02
  • Est. Shipping Date: loading
Application Zone      :      Plant Room
Application      :      Duct Pressure Monitoring | Filter Monitoring | Fan Monitoring | VAV Control | Air Velocity Monitoring
Brand      :      Veris
Burst Pressure      :      5 psid (34 500 Pa)
Calibration Certificate      :      No
Dimension Depth      :      1.6" (42 mm)
Dimension Height      :      4.4" (112 mm)
Dimension Probe Diameter      :      0.3" (7 mm)
Dimension Probe Length      :      7.4" (188 mm)
Dimension Weight      :      4.4 oz (125 g)
Dimension Width      :      3.5" (88 mm)
Display Precision      :      0.001
Display Size      :      0.7" x 1.1" (17 mm x 28 mm)
Display Type      :      LCD
Electrical Wiring Size      :      AWG 22 (35 mm²)
Electrical Wiring      :      3-wires
Enclosure Material      :      ABS Plastic
Fitting Material      :      Brass
Fitting Size      :      0.24" (6 mm)
Fitting Type      :      Male
IP Protection      :      IP65 (NEMA 4)
LED Indicator Type      :      RGB
Measurement Type      :      Differential Pressure
Medium      :      Air | Gas
Model      :      PX3DLX02
Mounting      :      Duct
Operating Temperature      :      -4 - 140 °F (-20 - 60 °C)
Output Specifications      :      4 - 20 mA | 0 - 5 V | 0 - 10 V
Outputs      :      Analog output
Pressure Measurement Accuracy      :      ±1% of F.S.
Pressure Measurement Drift      :      <0.5%
Pressure Measurement Range      :      1"WC (250 Pa) | 2.5"WC (500 Pa) | 5"WC (1000 Pa) | 10"WC (2500 Pa)
Product Certification      :      CE
Product Type      :      Sensor
Range      :      PX3
Standards EMC      :      EN 61000-6-3 | Class B | EN 61000-6-1 | EN61326-1 | EN61326-2-3
Supply Voltage AC Nominal      :      24 VAC
Supply Voltage DC Range      :      12 - 30 VDC
Warranty      :      5 years

The PX3 transducer can measure either air pressure or velocity with the flip of a switch. Duct and panel models have two pressure and velocity options - 0 to 1 in-WG / 0 to 3000 ft/min or 1 to 10 in-WG/3000 to 6000 ft/min with four field-selectable subranges. The PX3 has an IP65/NEMA 4 environmental rating and a 5 years limited warranty.

  • Wireless configuration - view and configure all field selectable parameters via smartphone, no ladder necessary for duct mount applications
  • High reliability sensor technology for long-term, maintenance-free operation
  • Excellent tolerance to overpressure and vibration reduces field failures
  • Water resistant housing - IP65/NEMA 4 housing allows for mounting in wash-down locations
  • Circuit protection avoids damage due to incorrect input wiring
  • Duct enclosure
  • Uni-directional or bi-directional, DIP switch selectable modes
  • Pushbutton auto-zero and digital input (2-position terminal block)
  • For indoor or outdoor use
