Veris TWLA00
Send Print Share
  1. pin-int

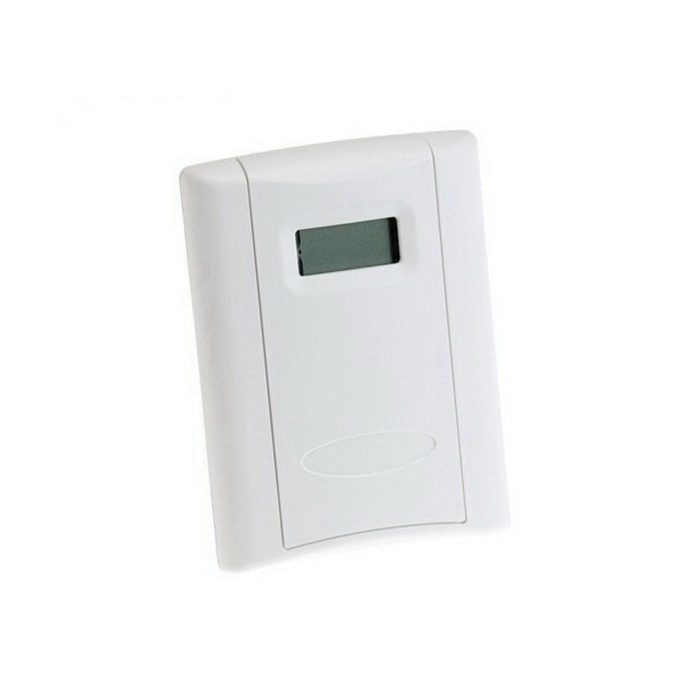

Veris TWLA00 Wall Temperature Sensor

Cloud White ABS Plastic 4 to 20 mA or 0 to 5/0 to 10 V Transmitter Temperature Sensor with LCD Display

  • Brand Name: Veris
  • Veris Part#: TWLA00
Application Zone      :      Living Space
Application      :      Wall
Brand      :      Veris
Color      :      Cloud White
Dimension Depth      :      1.2" (30 mm)
Dimension Height      :      4.8" (122 mm)
Dimension Width      :      3.5" (89 mm)
Display Size      :      1.2" x 0.6" (30.5 mm x 14 mm)
Display Type      :      LCD
Electrical Wiring Size      :      24 - 18 AWG (0.22 - 0.75 mm²)
Enclosure Material      :      ABS Plastic
Measurement Type      :      Temperature
Model      :      TWLA00
Mounting      :      Wall
Operating Temperature      :      32 - 122 °F (0 - 50 °C)
Output Specifications      :      4 - 20 mA | 0 - 5 V | 0 - 10 V
Outputs      :      Analog output
Override      :      No
Product Certification      :      CE
Product Type      :      Sensor
Range      :      TW
Setpoint      :      No
Supply Voltage AC Nominal      :      24 VAC
Supply Voltage DC Range      :      12 - 30 VDC
Temperature Calibration Certificate      :      None
Temperature Measurement Accuracy      :      ±0.9 °F (±0.5 °C)
Temperature Measurement Range      :      50 - 95 °F (10 - 35 °C) | 32 - 122 °F (0 - 50 °C)
Temperature Sensor Type      :      Temperature Transmitter
Warranty      :      5 years

These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment.

  • Wall mount - low-profile housing
  • Quick installation - reduced downtime for deployment
  • Solid-state, integrated circuit transmitter
  • pdf CE Declaration https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/tw-CEDec02081.pdf
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/TW_TE_d0117.pdf
  • pdf Installation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/t-trans_i0p2.pdf
