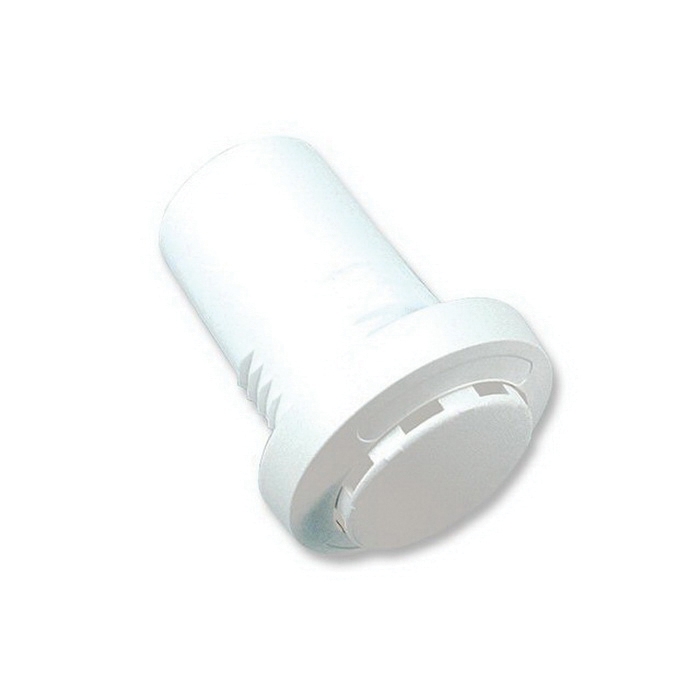

Veris TSB0 Button Temperature Sensor

Cloud White ABS Plastic 100 Ohm Platinum RTD Ceiling Mount PTC Temperature Sensor

  • Brand Name: Veris
  • Veris Part#: TSB0
  • Est. Shipping Date: loading
Temperature Sensor Type      :      100 Ohm Platinum RTD
Temperature Measurement Accuracy      :      ±0.6 °F (±0.3 °C)
Temperature Measurement Range      :      32 - 122 °F (0 - 50 °C)
Mounting      :      Ceiling
Outputs      :      Resistive output
Temperature Calibration Certificate      :      None
Application      :      Hospitals | Labs | Clean Rooms
Application Zone      :      Living Space
Brand      :      Veris
Color      :      Cloud White
Dimension Depth      :      Installed: 0.6" (16 mm) | Total: 2.7" (68 mm)
Dimension Height      :      2" (51 mm)
Dimension Width      :      2" (51 mm)
Electrical Wiring Size      :      22 AWG (0.32 mm²)
Enclosure Material      :      ABS Plastic
Measurement Type      :      Temperature
Model      :      TSB0
Operating Temperature      :      -13 - 221 °F (-25 - 105 °C)
Product Type      :      Sensor
Range      :      TS
Warranty      :      5 years

TS sensors are ceiling-mounted in an unobtrusive housing. The easy to install units are ideal for office environments, as well as museums, galleries or any other open indoor setting. These sensors are highly accurate, reliable and come with a 5 years warranty.

  • Ceiling mount probe for more accurate readings, ideal for open office environments
  • Recessed press-fit sensor virtually disappears, great for museums and galleries
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/TC_TS Series_d0321.pdf
  • pdf Installation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/tc_ts_i0d2.pdf
