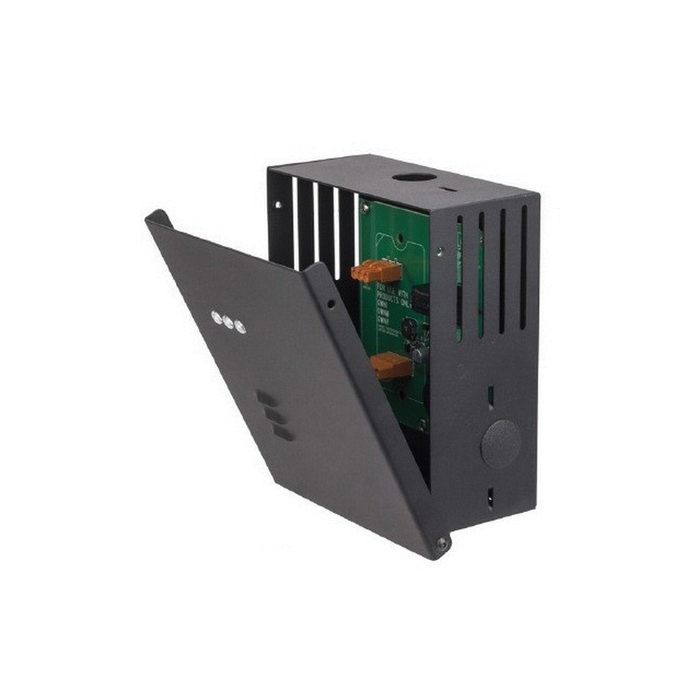

Veris AGAE Gas Detection Enclosure

Metal Enclosure for use with GWNxx Analog Gas Platform

  • Brand Name: Veris
  • Veris Part#: AGAE
  • Est. Shipping Date: loading
Application Zone      :      Plant Room
Application      :      Housing
Brand      :      Veris
Color      :      Black
Dimension Depth      :      2.76" (70 mm)
Dimension Height      :      6.61" (168 mm)
Dimension Width      :      5.76" (146 mm)
Electrical Wiring Size      :      30 - 12 AWG (0.05 - 4 mm²)
Electrical Wiring      :      3-wires
Enclosure Material      :      Metal
IP Protection      :      IP20 (NEMA 1)
LED Indicator Type      :      Red-light
Model      :      AGAE
Operating Humidity      :      0 - 90% non-condensing
Operating Temperature      :      -4 - 122 °F (-20 - 50 °C)
Output Specifications      :      4 - 20 mA | 0 - 5 V | 0 - 10 V
Outputs      :      Analog output
Power Input Frequency      :      50 - 60 Hz
Product Type      :      Accessory
Range      :      GWN Series
Relay Contact Ratings      :      10 A @ 250 VAC
Supply Voltage AC Nominal      :      24 VAC
Supply Voltage AC Range      :      20 - 28 VAC
Supply Voltage DC Range      :      15 - 30 VDC
Warranty      :      5 years

The AGxE series is a rugged metal wall mount enclosure for GWNxx gas platforms. The AGxE provides a modular solution for applications that require a rugged enclosure along with an integral audible horn and 10 A relay for direct fan control.
