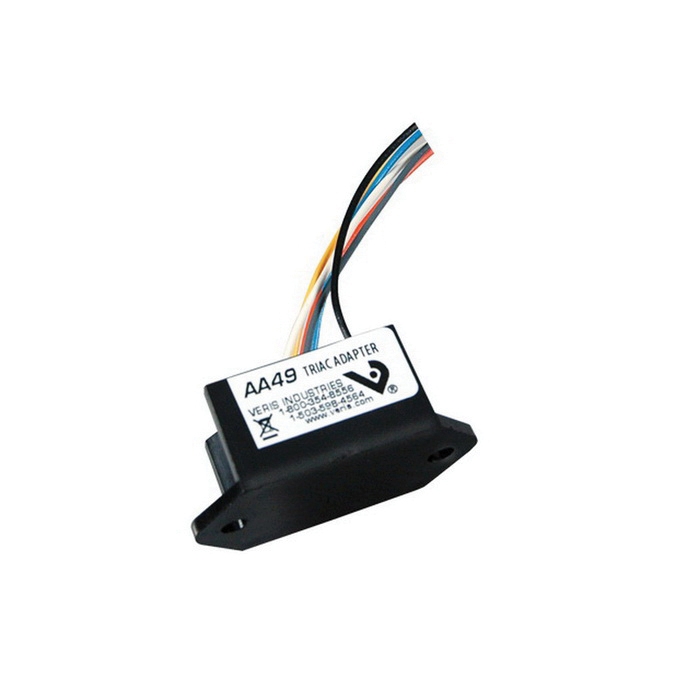

Veris AA49 Pressure Sensor Accessory

24 VAC NO EP3 Triac Adapter

  • Brand Name: Veris
  • Veris Part#: AA49
  • Est. Shipping Date: loading
Application Zone      :      Plant Room
Application      :      Pneumatic transducer accessory
Brand      :      Veris
Dimension Depth      :      0.8" (19 mm)
Dimension Height      :      1.1" (26 mm)
Dimension Width      :      1.9" (48 mm)
Model      :      AA49
Operating Current      :      25 mA
Operating Temperature      :      41 - 140 °F (5 - 60 °C)
Output Specifications      :      N.O.
Outputs      :      Switch output
Product Type      :      Accessory
Range      :      EP3 Series
Supply Voltage AC Nominal      :      24 VAC
Supply Voltage AC Range      :      24 - 30 VAC

Use the AA49 adapter to connect the EP3 electroneumatic transducer to the digital controller when the EP3 output is set to tristate.

  • 150 Ohm closed contact resistance, 125 mW maximum, NO (closes to GND) output
