Veris AFS-460-137 Pressure Switch

0.4 to 12 in-WC Dry Media Air Pressure Sensing Switch, 24 VAC

  • Brand Name: Veris
  • Veris Part#: AFS-460-137
  • Est. Shipping Date: loading
Application Zone      :      Plant Room
Application      :      Fan Monitoring | Filter Monitoring
Brand      :      Functional Devices
Burst Pressure      :      13" WC (3 200 Pa)
Dimension Depth      :      3.6" (90 mm)
Dimension Height      :      6.13"(156 mm)
Dimension Weight      :      1.2 lb (544 g)
Dimension Width      :      3.3" (82 mm)
Display Type      :      None
Electrical Wiring      :      3-wires
Enclosure Material      :      Metal
Fitting Material      :      Metal
Fitting Size      :      0.25" (6.3 mm)
Fitting Type      :      Male
Measurement Type      :      Differential Pressure
Medium      :      Air | Gas
Model      :      AFS-460-137
Mounting      :      Duct
Operating Temperature      :      -40 - 180 °F (-40 - 82 °C)
Output Specifications      :      N.C. 8 A @ 250 VAC
Outputs      :      Switch output
Pressure Measurement Range      :      0.4 - 12" WC (100 - 3 000 Pa)
Product Type      :      Sensor
Range      :      AFS
Warranty      :      2 years

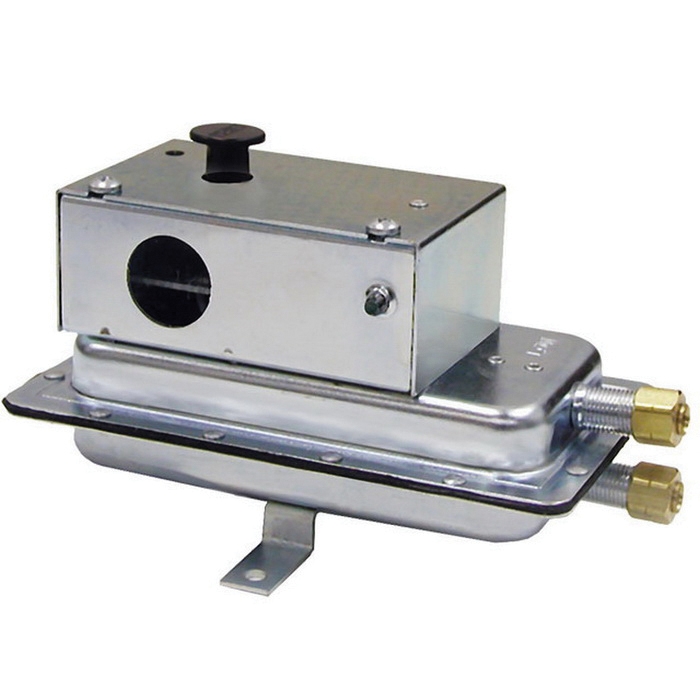

The AFS-460 is a general purpose airflow proving switch designed for 24 VAC (AFS-460-137) HVAC and energy management applications where a manual reset switch with DPDT contacts is desirable. It may be used to sense positive, negative, or differential air pressure. The plated housing contains a diaphragm, a calibration spring, a snap-acting switch with manual reset button, and a DPDT relay. The sample connections located on each side of the diaphragm accept 0.25 in OD tubing via the integral compression ferrule and nut. An enclosure cover guards against accidental contact with the live switch terminal screws and the set point adjusting screw. The enclosure cover will accept a 0.5 in conduit connection. The manual reset button is located on the top surface of the enclosure cover.

  • Multi-purpose - sense positive, negative or differential air pressure
  • Durable - housed in a plated enclosure with removable metal guard protecting setpoint screw and snap action switch terminals
  • Enclosure cover - avoid accidental contact with the live switch
  • Air or combustion by-products that will not degrade silicone sample media
  • Diaphragm in any vertical plane mounting position
  • 2 form-C rated 8 A at 250 VAC contacts
  • Ferrule and nut compression type connectors will accept 0.25 in OD rigid tubing sample line connections
  • pdfDatasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/afs-460_d0518.pdf
