Veris E50F5A Advanced Power Meter

2-Pulse Input Compact Power and Energy Meter with LON TP/FT-10 Communication

  • Brand Name: Veris
  • Veris Part#: E50F5A
  • Est. Shipping Date: loading
Display Type      :      LCD
Mounting      :      Din-Rail
Monitored Voltage Range      :      90 - 600 VAC
Communication      :      LON
Output Specifications      :      LON
Metering Product Family      :      E50 Power Meter
Product Type      :      Compact Power and Energy Meter with LON TP/FT-10 Communication
Range      :      E50
Frequency Rating      :      50 - 60 Hz
Accuracy      :      +/- 0.2%
Operating Temperature      :      -22 - 158 °F
Dimensions      :      3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H
Environmental Conditions      :      Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m

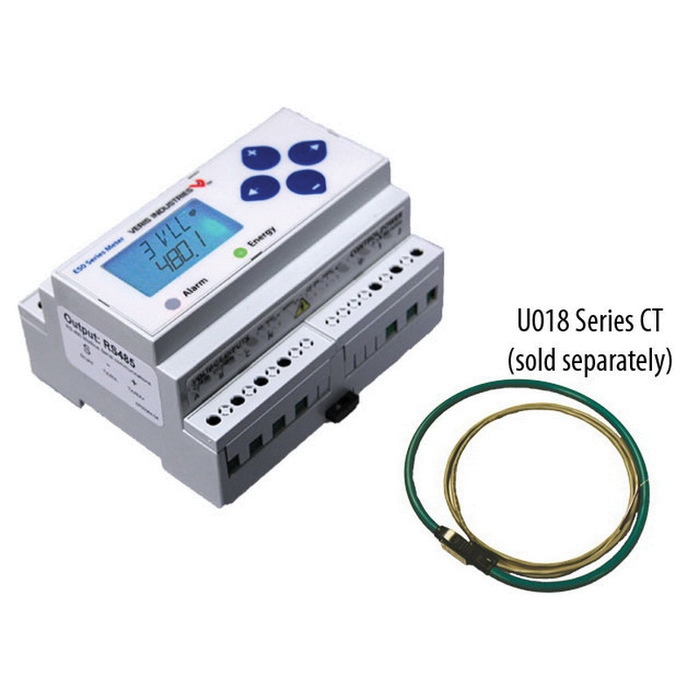

The E50FxA DIN rail power meter provides a solution for measuring energy data with a single device. Inputs include pulse, control power, CT, and 3-phase voltage. The E50FxA supports multiple output options, including LON and data logging (E50F5A only). The LCD screen on the faceplate allows instant output viewing. These meters include built-in CT integrators and CT power supplies. The E50F5A work only with Veris E683 series rope style CTs. The meter is housed in a plastic enclosure suitable for installation on T35 DIN rail according to EN50022. The E50 can be mounted with any orientation over the entire ambient temperature range, either on a DIN rail or in a panel. The meter is not sensitive to CT orientation to reduce installation errors.

  • 2 pulse input (normally open): solid-state or mechanical contacts (current less than 1 mA)
  • Communication port: 2-wire, LON TP/FT-10 output
  • Mounting location - not suitable for wet locations, for indoor use only
  • Metering over range: +20%
  • pdf CE Declaration https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/CE Declaration - E50 and E51 - ECDE5xDoC_-_V1.0.pdf
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/E5xxxA_d1021.pdf
  • pdf Installation guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/e50fxA_full_i0f2.pdf
