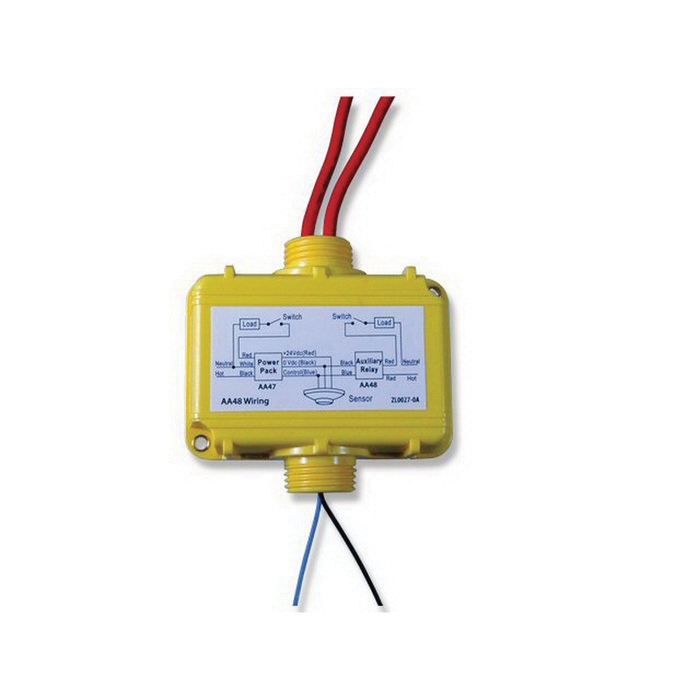

Veris AA48 Occupancy Sensor

24 VDC 30 A Auxiliary Relay for Ceiling Mount Occupancy Sensors

  • Brand Name: Veris
  • Veris Part#: AA48
  • Est. Shipping Date: loading
Application Zone      :      Plant Room
Application      :      Building Automation Systems
Color      :      Yellow
Model      :      AA48
Operating Humidity      :      0 - 90% RH, non-condensing
Operating Temperature      :      32 - 122 °F (0 - 50 °C)
Outputs      :      Relay
Product Certification      :      UL
Range      :      AA48
Relay Construction      :      Mechanical
Relay Contact Ratings      :      1 H.P. @ 120 VAC | Tungsten: 15 A @ 120 VAC | Balast: 20 A @ 277 VAC
Relay Poles/Throw      :      SPST
Warranty      :      1 year

The AA48 auxiliary relay is a low-voltage relay device that expands the switching capacity of an AA47 power pack, controlling additional circuits in response to a signal from an MSC occupancy sensor. The relay has an SPST, normally open output that is controlled directly by the MSC. The relay is rated for maximum 15 A tungsten and 20 A ballast loads. Mount the AA48 either inside or outside a standard junction box using a 1/2 in, threaded EMT nipple. Route power to the sensor using plenum-rated cable.

  • pdfDatasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/MSC_d0115.pdf
  • pdfInstallation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/aa48_i0b2.pdf
