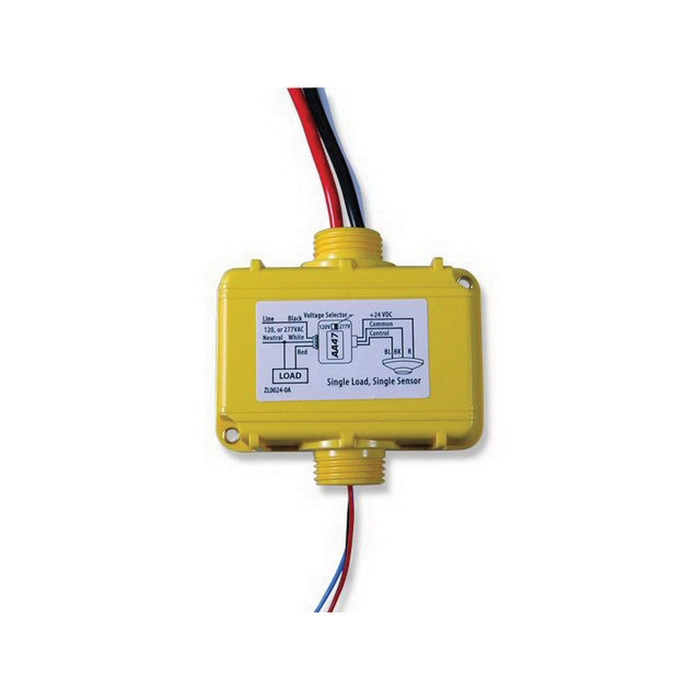

Veris AA47 Occupancy Sensor

120/277 VAC Line-Switching Power Pack, 24 VDC Output

  • Brand Name: Veris
  • Veris Part#: AA47
  • Est. Shipping Date: loading
Application Zone      :      Plant Room
Application      :      Building Automation Systems
Color      :      Yellow
Model      :      AA47
Operating Humidity      :      0 - 90% RH, non-condensing
Operating Temperature      :      32 - 122 °F (0 - 50 °C)
Outputs      :      Relay
Product Certification      :      UL
Range      :      AA47
Relay Construction      :      Mechanical
Relay Contact Ratings      :      1 H.P. @ 120 VAC | Tungsten: 15 A @ 120 VAC | Balast: 20 A @ 277 VAC
Relay Poles/Throw      :      SPST
Warranty      :      1 year

The AA47 line-switching power pack provides local switching capability to control loads at a signal from MSC series occupancy sensors, independent of any connection to building control systems. The AA47 routes 120/277 VAC, 60 Hz line power directly to a form a relay contact (SPST) to control a load and generates full-wave, 24 VDC to power up to four MSC sensors (dependent on model). The AA47 can be mounted either inside or outside an electrical box, and sensor power can be routed via plenum-rated cable to the sensor(s).

  • 24 VDC, 100 mA maximum output
  • pdfDatasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/MSC_d0115.pdf
  • pdfInstallation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/aa47_i0b2.pdf
