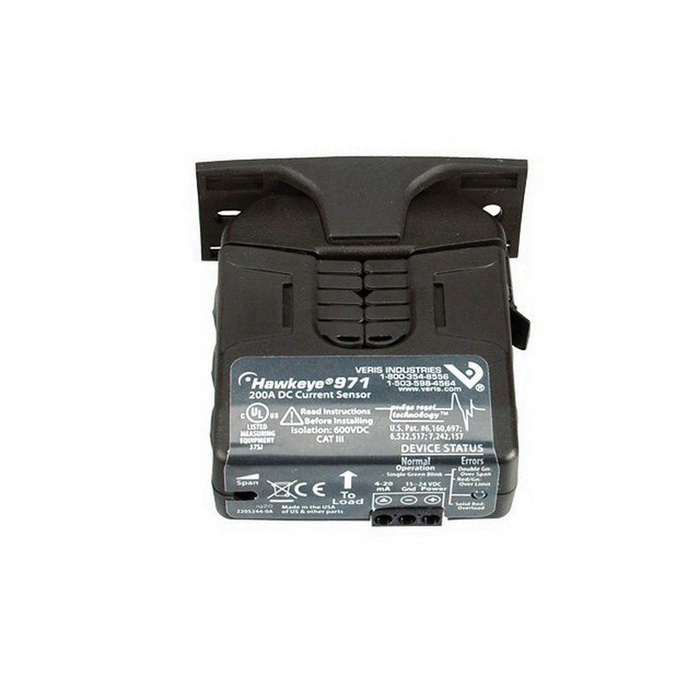

Veris H971 Current Transducer

Hawkeye 0 to 200 A DC Input 4 to 20 mA Bi-Directional Output Direct Current Transducer, Split-Core, 1.1 x 0.8 in

  • Brand Name: Veris
  • Veris Part#: H971
  • Est. Shipping Date: loading
Application      :      Building Automation Systems
Current Measurement Accuracy      :      ±0.5 A below 100 A, ±0.5% of F.S. above
Current Measurement Range      :      0 - 200 A
Current Sensor type      :      Current Transducer, AC
Electrical Wiring Size      :      24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type      :      DC Current
Model      :      H971
Monitored Wire Size      :      0.8" (21 mm)
Mounting      :      Split Core
Operating Humidity      :      10 - 90% RH, non-condensing
Operating Temperature      :      -22 - 140 °F (-30 - 60 °C)
Output Specifications      :      4 - 20 mA
Outputs      :      Analog output
Product Certification      :      UL | CE
Product Type      :      Sensor
Range      :      DC Series
Relay Coil Voltage      :      None
Relay Contact Ratings      :      None
Relay Poles/Throw      :      None
Warranty      :      5 years

Hawkeye DC transducers provide accurate load level monitoring of DC loads. The H971 use Pulse Reset Technology with field proven circuitry to provide a superior solution for DC applications with minimal risk of permanent magnetization, providing longer life and better accuracy. The H971 have 4 to 20 mA output only. The H971 also offers bi-directional sensing capability and a user-adjustable span to allow greater application flexibility.

  • Retrofit - self-gripping iris for easy installation
  • Flexibility - bracket can be installed in three different configurations
  • Patented pulse reset technology significantly increases accuracy, sensor is not affected by stray magnetic fields, minimize magnetization from over current faults
  • Status LED ensures proper wiring
  • HOA - Bi-directional model, user adjustable span from +/-20 to +/-200 A
  • pdf CE Declaration https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/h97x-CEDec11081.pdf
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/H971_EA20_d0321.pdf
  • pdf Engineering Specs https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/h971_h971sp_e12091.pdf
  • pdf Installation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/h971_971sp_i0d2.pdf
