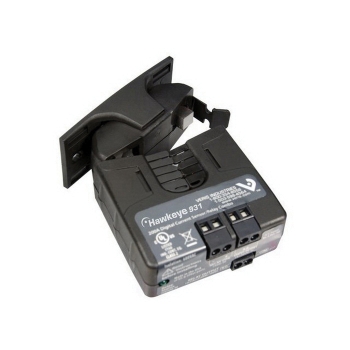

Veris H931 Current Transducer

Hawkeye 0 to 30/60/120 A Input 4 to 20 mA Output Analog Current Transducer with Relay, Split-Core, 1.1 x 0.8 in

  • Brand Name: Veris
  • Veris Part#: H931
  • Est. Shipping Date: loading
Application      :      Building Automation Systems
Current Measurement Accuracy      :      ±2% of F.S. above 10% of F.S.
Current Measurement Range      :      0 - 30 A | 0 - 60 A | 0 - 120 A
Current Sensor type      :      Current Transducer, AC
Electrical Wiring Size      :      24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type      :      AC Current
Model      :      H931
Monitored Frequency Range      :      50 - 60 Hz
Monitored Wire Size      :      0.8" (21 mm)
Mounting      :      Split Core
Operating Humidity      :      10 - 90% RH, non-condensing
Operating Temperature      :      5 - 140 °F (-15 - 60 °C)
Output Specifications      :      4 - 20 mA
Outputs      :      Analog output | Relay
Product Certification      :      UL | CE
Product Type      :      Sensor
Range      :      HX31 Series
Relay Coil Voltage      :      24 VAC/DC
Relay Construction      :      Mechanical
Relay Contact Ratings      :      Resistive: 5 A @ 250 VAC | Resistive: 5 A @ 30 VDC | Inductive: 2 A @ 250 VAC | Inductive: 2 A @ 30 VDC
Relay Poles/Throw      :      SPST
Warranty      :      5 years

The Hawkeye H931 provides accurate load trending information with a proportional 4 to 20 mA output signal. These devices offer three amperage ranges for versatility, with easy slide-switch selection. The command relay is fully integrated in the device, but it is isolated from the current transducer. This combination makes these products ideal for start/stop control and status monitoring of motors, using one device instead of two.

  • Loop powered analog current transducer with integral start/stop command relay
  • Reduces the number of installed components, saves time and space
  • Self-gripping, split-core design for fast retrofit installation, no need to remove conductor
  • Reduces installation charges - one device to install for start/stop and status
  • Fewer wires - power the current sensor and receive the 4 to 20 mA signal with only two wires
  • Selectable factory calibrated ranges up to 120 A for increased flexibility and resolution
  • 30 mA at 12 to 30 VDC sensor power
  • pdfDatasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/H931_d0321.pdf
  • pdfEngineering Specs https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/h931e.pdf
  • pdfInstallation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/h931_i0d2.pdf
