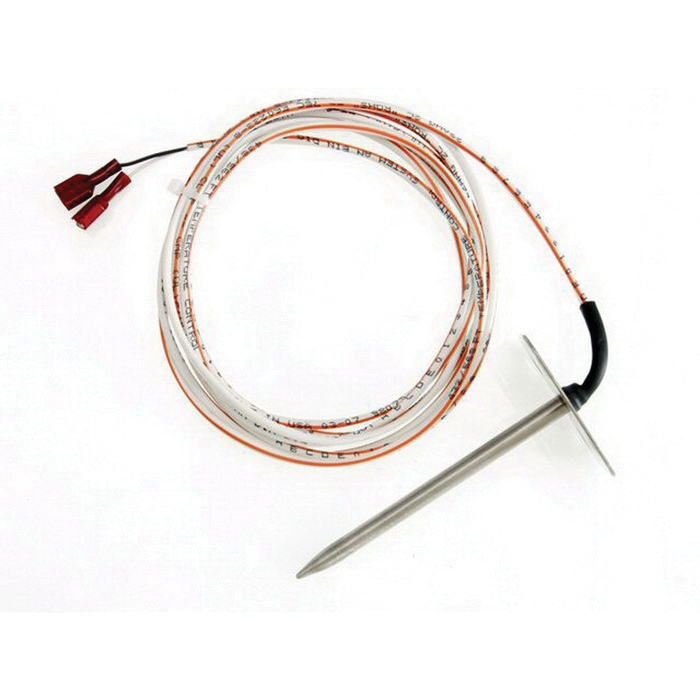

Veris TJBDR00 Discharge Air Temperature Sensor

Stainless Steel Probe 4 in 10 kOhm T2 Thermistor VAV Discharge NTC Temperature Sensor, 5 ft Cable

  • Brand Name: Veris
  • Veris Part#: TJBDR00
  • Est. Shipping Date: loading
Application Zone      :      Plant Room
Application      :      VAV Box
Brand      :      Veris
Dimension Depth      :      0.5" (13 mm)
Dimension Height      :      2" (51 mm)
Dimension Probe Diameter      :      0.25" (6 mm)
Dimension Probe Length      :      4" (102 mm)
Dimension Width      :      1.5" (38 mm)
Electrical Wiring Size      :      22 AWG (0.32 mm²)
Enclosure Material      :      Stainless Steel
Measurement Type      :      Temperature
Model      :      TJBDR00
Mounting      :      Duct
Operating Temperature      :      -13 - 221 °F (-25 - 105 °C)
Outputs      :      Resistive output
Product Type      :      Sensor
Range      :      TJ
Temperature Calibration Certificate      :      None
Temperature Measurement Accuracy      :      ±1.8 °F (±1.0 °C)
Temperature Measurement Range      :      -58 - 302 °F (-50 - 150 °C)
Temperature Sensor Type      :      10k Ohm Type 2 Thermistor
Warranty      :      5 years

The TJ series temperature sensors are highly accurate and cost effective, with trouble-free installation. The sensor is encased in a sturdy corrosion-resistant stainless steel probe. A variety of RTD/thermistor sensor and probe length options are available for maximum versatility in applications.

  • Easy installation - stainless steel duct probe with mounting flange
  • Installation ready for VAV systems and plenum areas, saves money on job commissioning and warranty service
  • 2-wire installation (optional quick disconnect), installs in minutes
  • Plenum rated cable standard
  • Application flexibility - 4 in duct probes
  • Resistive output
