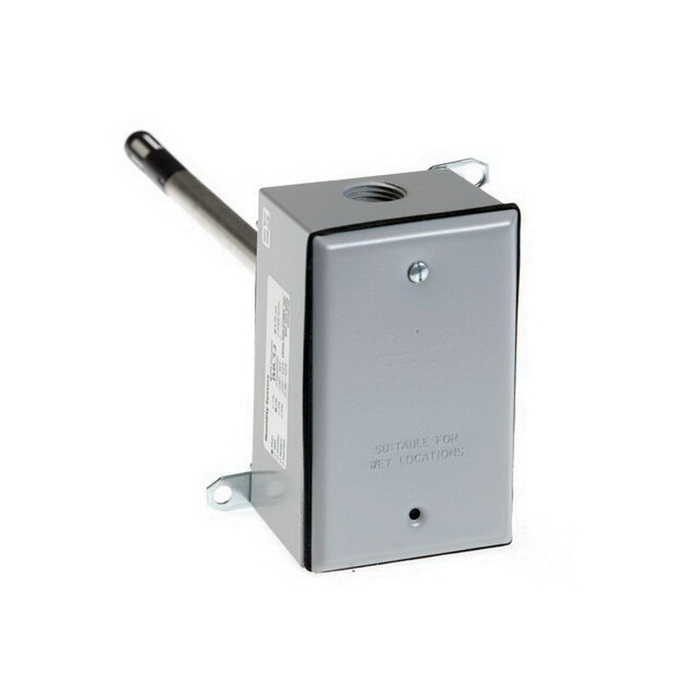

Veris TDDAM22 Duct Temperature Sensor

Stainless Steel Probe 8-1/2 in 4 to 20 mA Transmitter Temperature Sensor, 32 to 122 deg F, 2-Point Calibration

  • Brand Name: Veris
  • Veris Part#: TDDAM22
  • Est. Shipping Date: loading
Application Zone      :      Plant Room
Application      :      Duct
Brand      :      Veris
Dimension Depth      :      2" (51 mm)
Dimension Height      :      4.3" (109 mm)
Dimension Probe Diameter      :      0.5" (13 mm)
Dimension Probe Length      :      8" (203 mm)
Dimension Width      :      2.7" (69 mm)
Electrical Wiring Size      :      22 AWG (0.32 mm²)
Enclosure Material      :      Stainless Steel
Measurement Type      :      Temperature
Model      :      TDDAM22
Mounting      :      Duct
Operating Temperature      :      -13 - 221 °F (-25 - 105 °C)
Output Specifications      :      4 - 20 mA
Outputs      :      Analog output
Product Certification      :      CE
Product Type      :      Sensor
Range      :      TD
Supply Voltage DC Range      :      5 - 30 VDC
Temperature Calibration Certificate      :      2 pts
Temperature Measurement Accuracy      :      ±0.9 °F (±0.5 °C)
Temperature Measurement Range      :      32 - 122 °F (0 - 50 °C)
Temperature Sensor Type      :      Temperature Transmitter
Warranty      :      5 years

Duct-mount temperature sensors from Veris are pre-calibrated and housed in sturdy stainless steel probes. The devices are easy to install, durable and highly accurate.

  • Cost-effective, high accuracy RTDs available with or without a junction box
  • Durable - corrosion resistant stainless steel probe design
  • No calibration required
  • 2-point calibration validation
  • Not suitable for wet locations, for indoor use only
  • 2-wire, loop powered temperature output
  • Solid-state, integrated circuit sensor
