Veris TCCC0 Ceiling Temperature Sensor | Veris Temperature Sensors TCC
  • We can help. Call 800-354-8556

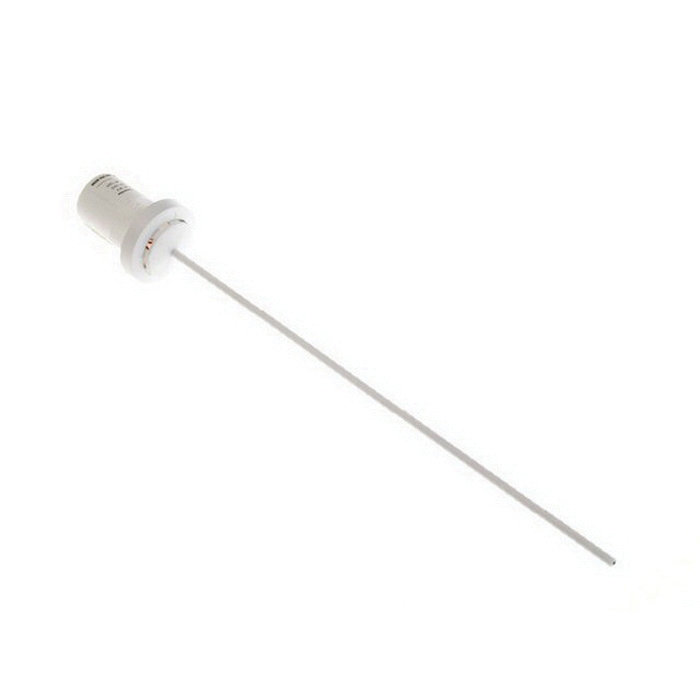

Veris TCCC0 Ceiling Temperature Sensor

White ABS Plastic 6 in 1 kOhm Platinum RTD PTC Temperature Sensor

  • Brand Name: Veris
  • Veris Part#: TCCC0
  • Est. Shipping Date: loading
Application Zone      :      Living Space
Application      :      Hospitals | Labs | Clean Rooms
Brand      :      Veris
Color      :      Cloud White
Dimension Depth      :      Installed: 0.6" (16 mm) | Total: 2.7" (68 mm)
Dimension Height      :      2" (51 mm)
Dimension Probe Diameter      :      3/16" (4.8 mm)
Dimension Probe Length      :      6" (152 mm)
Dimension Width      :      2" (51 mm)
Electrical Wiring Size      :      22 AWG (0.32 mm²)
Enclosure Material      :      ABS Plastic
Measurement Type      :      Temperature
Model      :      TCCC0
Mounting      :      Ceiling
Operating Temperature      :      -13 - 221 °F (-25 - 105 °C)
Outputs      :      Resistive output
Product Type      :      Sensor
Range      :      TC
Temperature Calibration Certificate      :      None
Temperature Measurement Accuracy      :      ±0.6 °F (±0.3 °C)
Temperature Measurement Range      :      32 - 122 °F (0 - 50 °C)
Temperature Sensor Type      :      1k Ohm Platinum RTD
Warranty      :      5 years

TC sensors are ceiling-mounted in an unobtrusive housing. The easy to install units are ideal for office environments, as well as museums, galleries or any other open indoor setting. These sensors are highly accurate, reliable and come with a 5 years warranty.

  • Ceiling mount probe for more accurate readings, ideal for open office environments
  • Recessed press-fit sensor virtually disappears, great for museums and galleries
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/TC_TS Series_d0321.pdf
  • pdf Installation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/tc_ts_i0d2.pdf
