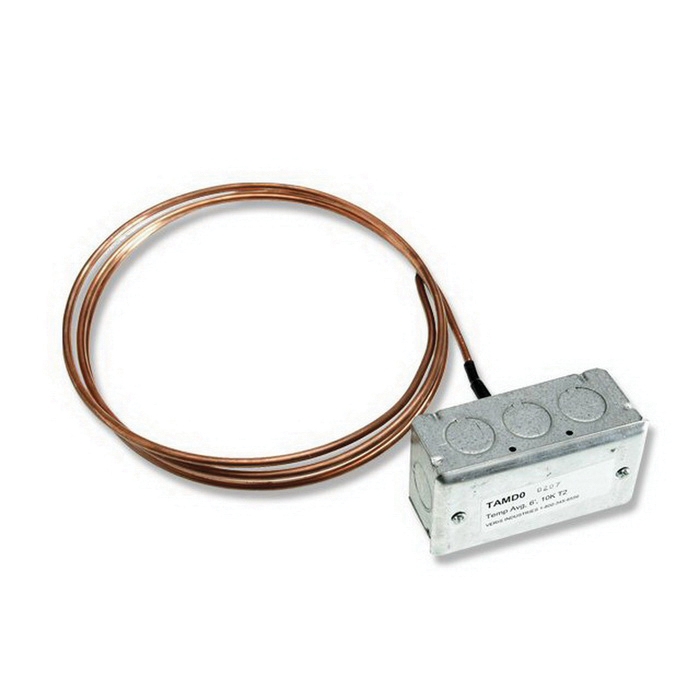

Veris TAHD2 Averaging Temperature Sensor

Copper Tubing 12 ft 10 kOhm T2 Thermistor NTC Averaging Temperature Sensor, 2-Point Calibration

  • Brand Name: Veris
  • Veris Part#: TAHD2
  • Est. Shipping Date: loading
Application Zone      :      Plant Room
Application      :      Chiller | Heat Exchangers
Brand      :      Veris
Dimension Depth      :      1.8" (44 mm)
Dimension Height      :      4.2" (102 mm)
Dimension Probe Diameter      :      3/16" (4.8 mm)
Dimension Probe Length      :      12' (3.6 m)
Dimension Width      :      2.3" (58 mm)
Electrical Wiring Size      :      22 AWG (0.32 mm²)
Enclosure Material      :      Galvanized Steel
Measurement Type      :      Temperature
Model      :      TAHD2
Mounting      :      Duct with Mounting Box
Operating Temperature      :      -13 - 221 °F (-25 - 105 °C)
Outputs      :      Resistive output
Product Type      :      Sensor
Range      :      TA
Temperature Calibration Certificate      :      2 pts
Temperature Measurement Accuracy      :      ±1.8 °F (±1.0 °C)
Temperature Measurement Range      :      -58 - 302 °F (-50 - 150 °C)
Temperature Sensor Type      :      10k Ohm Type 2 Thermistor
Warranty      :      5 years

The TA series is a flexible TA sensor which averages the temperature read across the entire length of the copper tubing, making it ideal for duct temperature measurements. TA series sensors average the measured temperature across the duct in 12 ft lengths for the flexible probe.

  • 2-point calibration validation
