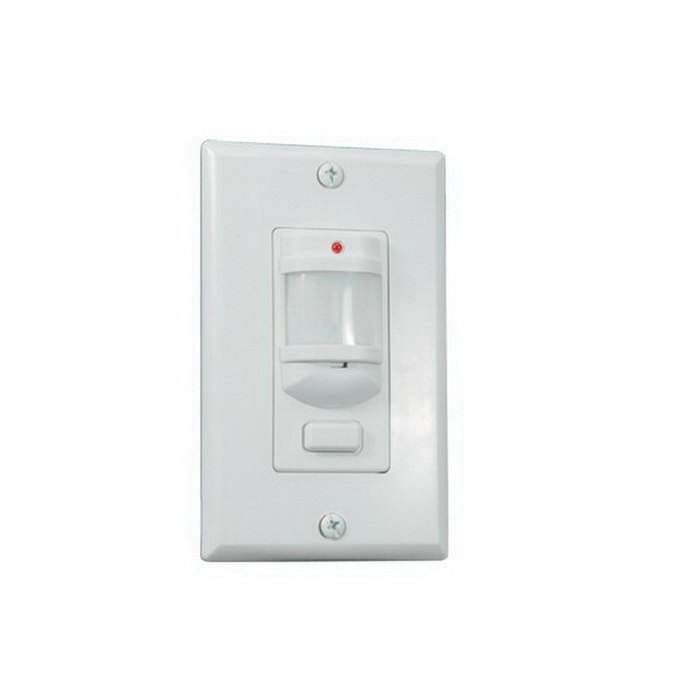

Veris MSBPM1W Occupancy Sensor

White Manual Wall Switch Occupancy Sensor

  • Brand Name: Veris
  • Veris Part#: MSBPM1W
  • Est. Shipping Date: loading
Application Zone      :      Living Space
Application      :      Building Automation Systems
Color      :      White
Installation Height      :      4' (1.2 m)
Measurement Type      :      Motion
Model      :      MSBPM1W
Motion Detection Angle      :      180 °
Motion Detection Range      :      35' (1.07 m)
Motion Detection Sensor Type      :      PIR
Mounting      :      Wall
Operating Humidity      :      0 - 90% RH, non-condensing
Operating Temperature      :      32 - 122 °F (0 - 50 °C)
Outputs      :      Relay
Product Certification      :      UL
Range      :      MSBPM1W
Relay Construction      :      Mechanical
Relay Contact Ratings      :      0.25 H.P. @ 120 VAC | Tungsten: 8.3 A @ 120 VAC | Balast: 6.5 A @ 277 VAC
Relay Poles/Throw      :      SPST
Warranty      :      1 year

The MSB series employs the latest passive infrared (PIR) technology to automatically control lighting for areas up to 1000 sq-ft, achieving energy savings and convenience. Each sensor employs a special 180 deg multi-segmented lens and PIR motion detector circuit to sense when a person enters the area and automatically activate the lights. The sensor will automatically switch the lights off after a preset delay if motion is no longer detected. The MSB Series fits in place of existing wall switches, connecting to existing wiring, similar to a typical wall switch. The MSB series is the simplest way to achieve energy saving lighting control with minimal installation time. To assure long relay life, the MSB series employs a low energy switch circuit to assure maximum contact life. These sensors are compatible with electronic and magnetic ballast loads.

  • Adjustable time delay
  • Bypass button for always on operability simplifies commissioning 180 deg motion detection
  • 180 deg motion detection
  • Line powered - no separate supply needed
  • Ballast compatibility - compatible with magnetic and electronic ballasts provides ultimate flexibility
  • Loading - no minimum loading requirement
  • Manual turn-on
  • 1 number of circuit
