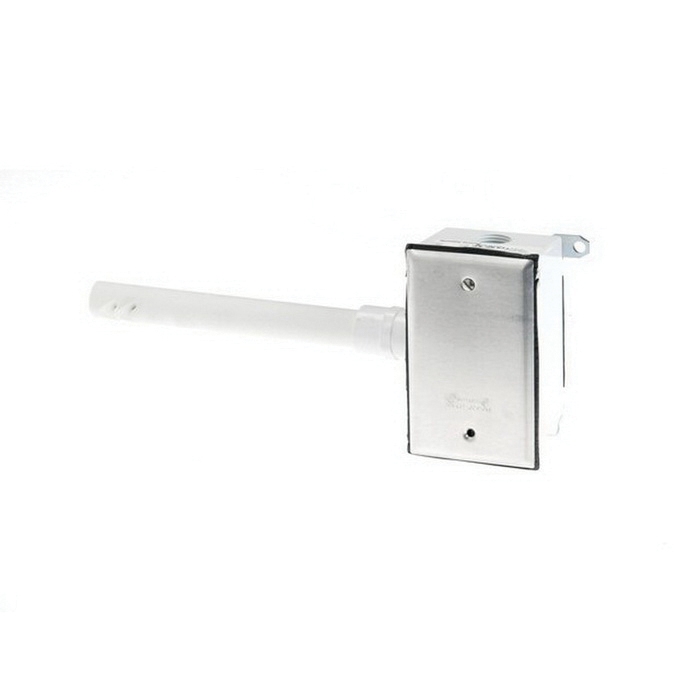

Veris HO2XMSTR1 Outdoor Humidity Sensor

Deluxe +/-2% Accuracy 4 to 20 mA 10 kOhm US Thermistor Outdoor Humidity and Temperature Sensor, 1-Point Calibration

  • Brand Name: Veris
  • Veris Part#: HO2XMSTR1
  • Est. Shipping Date: loading
Application Zone      :      Outdoor
Application      :      Outdoor Reference
Brand      :      Veris
Color      :      Gray and White
Dimension Depth      :      2" (51 mm)
Dimension Height      :      4.6" (117 mm)
Dimension Probe Diameter      :      0.7" (18 mm)
Dimension Probe Length      :      9.9" (251 mm)
Dimension Width      :      2.9" (74 mm)
Electrical Wiring Size      :      22 AWG (0.32 mm²)
Enclosure Material      :      Cast Aluminum/Stainless Steel Cover
Feature Level      :      Deluxe
Humidity Calibration Certificate      :      None
Humidity Measurement Accuracy      :      ±2%
Humidity Measurement Drift      :      ±1% @ 68 °F (20 °C) annually for 2 years
Humidity Measurement Range      :      0 - 100% RH
Humidity Measurement Resolution      :      0.1% RH
Humidity Sensor Type      :      Thin film capacitive, replaceable
Measurement Type      :      Humidity | Temperature
Mounting      :      Outdoor Wall
Operating Humidity      :      0-100% RH, non-condensing (will recover from saturation)
Operating Temperature      :      -40 - 122 °F (-40 - 50 °C)
Output Specifications      :      4 - 20 mA
Outputs      :      Analog output | Resistive temperature output
Product Certification      :      CE
Product Type      :      Sensor
Range      :      HO
Supply Voltage DC Range      :      12 - 30 VDC
Temperature Calibration Certificate      :      1 pt
Temperature Measurement Accuracy      :      ±0.4 °F (±0.2 °C)
Temperature Measurement Range      :      32 - 158 °F (0 - 70 °C)
Temperature Sensor Type      :      10k Ohm US Thermistor
Warranty      :      5 years (1 year on replaceable RH element)

HO series deluxe humidity transmitters provide an ideal solution for measuring relative humidity in a wide range of conditions. All devices are equipped with a thin-film capacitive sensor that is easily replaceable in the field. The outdoor HO housing is completely weather proof - the most rugged sensor available. All deluxe HO models come with a standard 5 years warranty.

  • Sensor element - thin-film capacitive sensor element recovers from 100% saturation
  • Accuracy - fully interchangeable element to 2% accuracy no calibration
  • Field replaceable - replace element in the field maintain accuracy and minimize downtime
  • Easy servicing - duct sensor element can be serviced without disturbing conduit
  • Potted circuitry - prevents costly condensate shorts
  • Flexibility - polarity insensitive, 2-wire 4 to 20 mA versions flexible systems compatibility save time in the field, stock fewer devices
  • Outdoor enclosure
  • 1-point calibration temperature certificate
  • 2-wire, not polarity sensitive (clipped and capped)
  • Digitally profiled thin-film capacitive (32-bit mathematics) US Patent 5,844,138 HS element, this sensing element has a 1 year warranty
