Veris AG05 Gas Sensor Module

+/-2% Accuracy R134A Refrigerant Sensor, 0 to 2000 ppm

  • Brand Name: Veris
  • Veris Part#: AG05
  • Est. Shipping Date: loading
Application Zone      :      Parking Garage | Plant Room | Living Space
Application      :      Parking Garage | Space Gas Detection
Brand      :      Veris
Measurement Type      :      R134a
Operating Humidity      :      0 - 90% RH, non-condensing
Operating Temperature      :      -4 - 122 °F (-20 - 50 °C)
Product Certification      :      CE | ETL
Product Type      :      Sensor Module
Range      :      AG for GWN
Refrigerant Measurement Accuracy      :      ±2% of F.S. (60 - 2000 ppm)
Refrigerant Measurement Range      :      0 - 2,000 ppm
Refrigerant Measurement Resolution      :      1 ppm
Refrigerant Sensor Type      :      NDIR
Refrigerant Type      :      R134a
Standards EMC      :      UL 61010-1
Warranty      :      2 years (from date of manufacture)

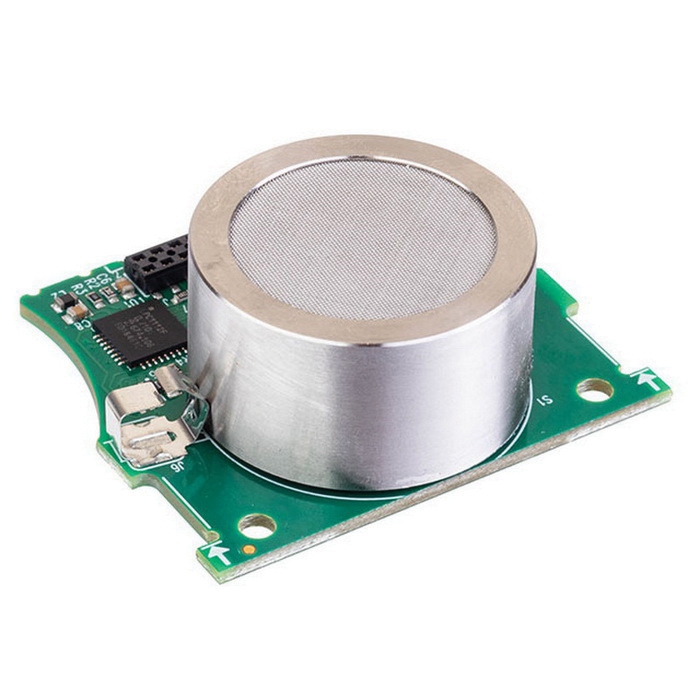

The AG05 R134A refrigerant sensing element is designed to work with the Veris GWN series gas platform unit to provide accurate monitoring of R134a refrigerant levels. R134A is a common refrigerant used in commercial, residential and automotive HVAC applications. The AG05 is intended to be mounted in a fixed location and will measure the air in that fixed location. The sensor is calibrated at the factory, so no field calibration is needed. The AG05 is warranted to meet accuracy specifications for two years after the date of manufacture.

  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/GWN_d0621.pdf
  • pdf Installation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/ag05_i0a2.pdf
