Veris AG01E Gas Sensor Module

+/-5% Accuracy CO Sensor, 0 to 500 ppm

  • Brand Name: Veris
  • Veris Part#: AG01E
  • Est. Shipping Date: loading
Application Zone      :      Parking Garage | Plant Room | Living Space
Application      :      Parking Garage | Space Gas Detection
Brand      :      Veris
CO Measurement Accuracy      :      ±5% of F.S.
CO Measurement Range      :      0 - 500 ppm
CO Measurement Resolution      :      1 ppm
CO Sensor Type      :      Electromechanical
Measurement Type      :      CO
Operating Humidity      :      0 - 90% RH, non-condensing
Operating Temperature      :      -4 - 122 °F (-20 - 50 °C)
Product Certification      :      CE | ETL
Product Type      :      Sensor Module
Range      :      AG for GWN
Standards EMC      :      UL 61010-1
Warranty      :      2 years (from date of manufacture)

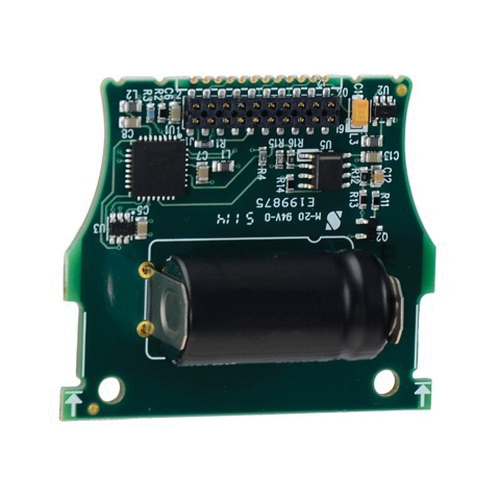

The AG01E carbon monoxide (CO) sensing element is designed to work with the Veris GWN series gas platform unit to provide monitoring of CO levels. Common sources of CO include automobile exhaust from gasoline engines, gasoline powered furnaces, gasoline powered water heaters, and gasoline generators. The sensor is calibrated at the factory, so no field calibration is needed. The AG01E is warranted to meet accuracy specifications for 1 year after the date of manufacture.

  • CO sensor, 5% accuracy, CO sources include exhaust from gasoline engines, furnaces, water heaters, generators
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/GWN_d0621.pdf
  • pdf Installation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/ag01e_i0b.pdf
