| Application | : | Building Automation Systems |
| Current Measurement Range | : | 0.75 - 50 A |
| Current Sensor type | : | Current Switch, AC |
| Electrical Wiring Size | : | 24 - 14 AWG (0.2 - 2.1 mm²) |
| Measurement Type | : | AC Current |
| Model | : | H806 |
| Monitored Frequency Range | : | 50 - 60 Hz |
| Monitored Wire Size | : | 0.7" (18 mm) |
| Mounting | : | Solid Core |
| Operating Humidity | : | 10 - 90% RH, non-condensing |
| Operating Temperature | : | 5 - 140 °F (-15 - 60 °C) |
| Output Specifications | : | N.C. 0.1A @ 30 VDC |
| Outputs | : | Switch output |
| Product Certification | : | UL |
| Product Type | : | Sensor |
| Range | : | HX06 Series |
| Relay Coil Voltage | : | None |
| Relay Contact Ratings | : | None |
| Relay Poles/Throw | : | None |
| Setpoint | : | Adjustable |
| Warranty | : | 5 years |

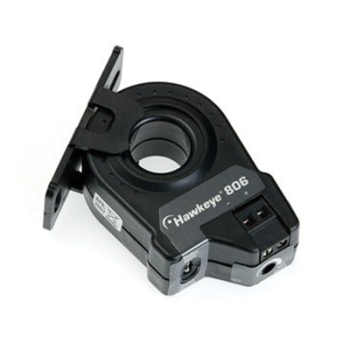

Hawkeye x06 series solid-core current switches provide accurate, reliable and maintenance-free fan and pump status indication where an NC output is needed.
- Adjustable trip point - versatility with four available amperage ranges
- No tubing necessary - easier to install than differential pressure switches
- 100% solid-state no moving parts to fail
- Output status LEDs for fast set up
- Easy placement - adjustable mounting bracket on the solid-core housing
- Self-gripping iris on split-core housings for easy installation
