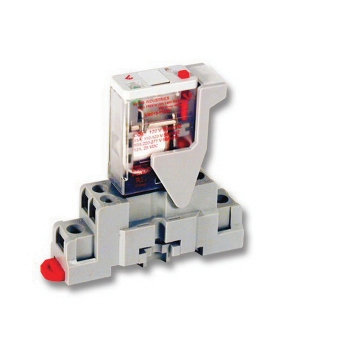

Veris FKIT-VMD1B-F24A Socket Relay

24 VAC Full-Featured Relay with VBD1B-F Socket, SPDT

  • Brand Name: Veris
  • Veris Part#: FKIT-VMD1B-F24A
  • Est. Shipping Date: loading
Application      :      Building Automation Systems
Feature Level      :      Deluxe Socket | Deluxe Relay
Finger Safe Terminals      :      Yes
Hand-Off-Auto      :      Yes
Model      :      FKIT-VMD1B-F24A
Mounting      :      DIN | Wall
Operating Temperature      :      -40 - 131 °F (-40 - 55 °C)
Product Certification      :      UL | CE | CSA
Product Type      :      Socket relay
Range      :      FKIT Series
Relay Coil Voltage      :      24 VAC
Relay Configuration      :      Kit
Relay Construction      :      Mechanical
Relay Contact Ratings      :      15 A @ 120 VAC | 15 A @ 28 VDC | 15 A @ 277 VAC
Relay Hold-Down Clip      :      Yes
Relay Poles/Throw      :      SPDT
Warranty      :      5 years

The Veris VMD1B-F series are full-featured SPDT blade style relays for socket/DIN mounting. The VMD1B-F series are equipped with an LED for coil proof, a flag for contact proof, an override lever and a push-to-test button for momentary contact control. The VMD1B-F allows for instant and conclusive troubleshooting. Never wonder if the relay, control system or wiring is the cause of a problem. The DIN-rail-compatible VBD1B-F sockets feature a slim design with finger-safe terminals and a removable hold-down clip. Never struggle with wire clips again.

  • Color-coded pushbutton - allows manual operation of relay, AC coils red or DC coils blue
  • LED status lamp - shows coil on/off status
  • 2-way mounting - side or DIN rail mounting system, retrofits existing panel mounting and 35 mm DIN rail
  • Override lever - when activated, locks pushbutton and contacts in the powered position
  • Flag indicator - shows relay status in manual or powered condition
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/VMD1B_d0921.pdf
