| Application | : | Building Automation Systems |
| Feature Level | : | Economy Socket | Deluxe Relay |
| Finger Safe Terminals | : | No |
| Hand-Off-Auto | : | Yes |
| Model | : | CKIT-VMD2B-F24D |
| Mounting | : | DIN | Wall |
| Operating Temperature | : | -40 - 131 °F (-40 - 55 °C) |
| Product Certification | : | UL | CE | CSA |
| Product Type | : | Socket relay |
| Range | : | CKIT Series |
| Relay Coil Voltage | : | 24 VDC |
| Relay Configuration | : | Kit |
| Relay Construction | : | Mechanical |
| Relay Contact Ratings | : | 15 A @ 120 VAC | 12 A @ 28 VDC | 12 A @ 277 VAC |
| Relay Hold-Down Clip | : | No |
| Relay Poles/Throw | : | DPDT |
| Warranty | : | 5 years |

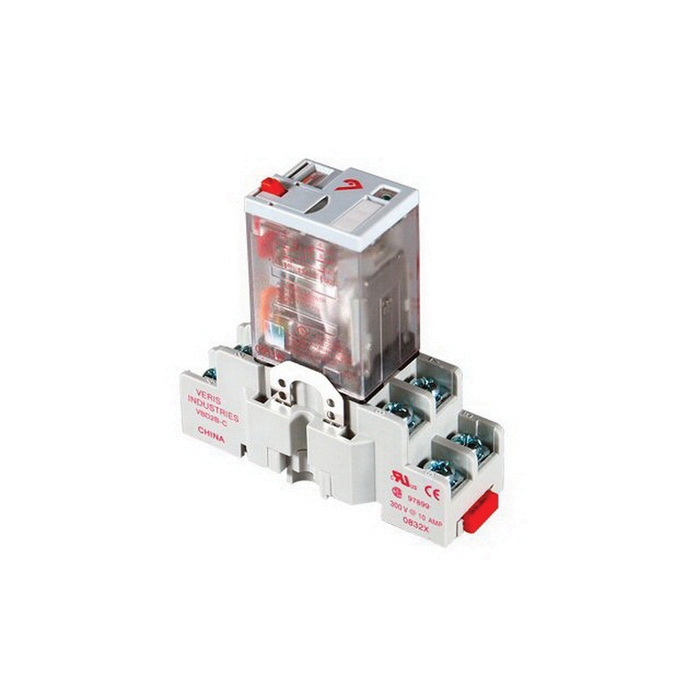

The VMD2B-F is the full-featured model in a slim housing. The LED, the flag indicator and the test button allow for worry-free operation and easy troubleshooting with minimal downtime. Never wonder where the problem is. DPDT blade-style relays for socket/DIN mounting.
- Color-coded pushbutton - allows manual operation of relay, AC coils red or DC coils blue
- LED status lamp - shows coil on/off status
- 2-way mounting - side or DIN rail mounting system, retrofits existing panel mounting and 35 mm DIN rail
- Override lever - when activated, locks pushbutton and contacts in the powered position
- Flag indicator - shows relay status in manual or powered condition
