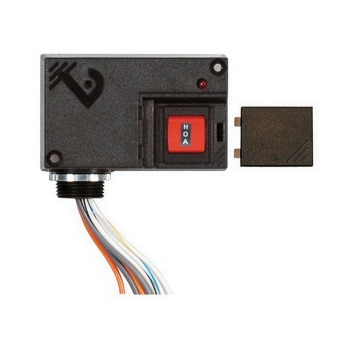

Veris V103 Enclosed Relay

Victory 10 to 30 VAC/VDC, 120 VAC Enclosed Relay with Digital Monitored HOA Switch, SPST/NO

  • Brand Name: Veris
  • Veris Part#: V103
  • Est. Shipping Date: loading
Application      :      Building Automation Systems
Electrical Wiring Size      :      Coil: 18 AWG (0.25 mm²), Contacts and HOA: 16 AWG (1.5 mm²)
Hand-Off-Auto      :      Yes
Model      :      V103
Mounting      :      DIN | Wall
Operating Temperature      :      -40 - 131 °F (-40 - 55 °C)
Product Certification      :      UL
Product Type      :      Relay
Range      :      Victory Series
Relay Coil Voltage      :      10 - 30 VAC/DC, 120 VAC
Relay Construction      :      Mechanical
Relay Contact Ratings      :      10 A @ 250 VAC
Relay Poles/Throw      :      SPST
Warranty      :      5 years

With a concealed HOA switch for local control and troubleshooting, the Victory 103 series relays provide HOA flexibility while limiting unauthorized switch manipulation. To further guard against control system override, some relays are equipped with a monitored HOA. The V103 offers a 3-wire digital monitor. Now your customers and technicians can enjoy the benefit of local control without the problems often caused by override.

  • Nipple mount - can be mounted to any electrical enclosure, easing installation
  • Protective cover - conceals and protects the HOA switch, reducing the likelihood of tampering
  • Sleek enclosure - reduces the need for panel space
  • Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
  • UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
  • Switch position monitors - allows the control system to notify personnel when a load is inadvertently left on or off
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/Vx01_Vx02_Vx03_d0321.pdf
  • pdf Installation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/v103_i0d2.pdf
