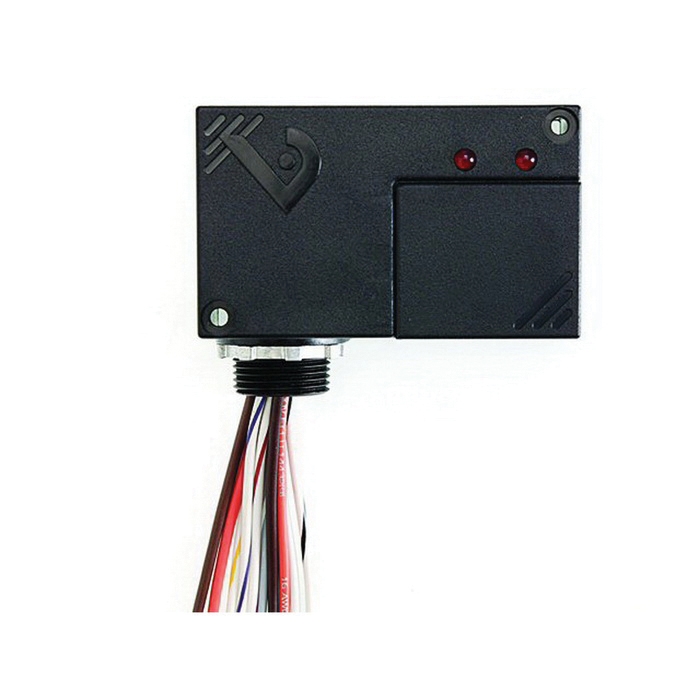

Veris V101D Enclosed Relay

Victory 10 to 30 VAC/VDC, 120 VAC Enclosed Relay with HOA Switch, Dual SPST/NO

  • Brand Name: Veris
  • Veris Part#: V101D
  • Est. Shipping Date: loading
Application      :      Building Automation Systems
Electrical Wiring Size      :      Coil: 18 AWG (0.25 mm²), Contacts and HOA: 16 AWG (1.5 mm²)
Hand-Off-Auto      :      Yes
Model      :      V101D
Mounting      :      DIN | Wall
Operating Temperature      :      -40 - 131 °F (-40 - 55 °C)
Product Certification      :      UL
Product Type      :      Relay
Range      :      Victory Series
Relay Coil Voltage      :      10 - 30 VAC/DC, 120 VAC
Relay Construction      :      Mechanical
Relay Contact Ratings      :      10 A @ 250 VAC
Relay Poles/Throw      :      2 x SPST
Warranty      :      5 years

With a concealed HOA switch for local control and troubleshooting, the Victory 101 series relays provide HOA flexibility while limiting unauthorized switch manipulation. To further guard against control system override.

  • Nipple mount - can be mounted to any electrical enclosure, easing installation
  • Protective cover - conceals and protects the HOA switch, reducing the likelihood of tampering
  • Sleek enclosure - reduces the need for panel space
  • Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
  • UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/Vx01_Vx02_Vx03_d0321.pdf
  • pdf Installation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/v101d_i0c2.pdf
