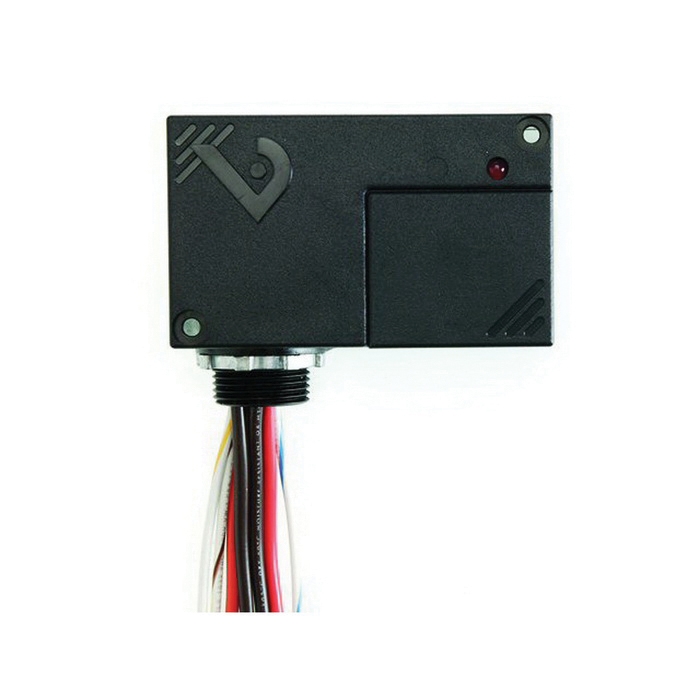

Veris V421 Enclosed Relay

Victory 24 VAC/VDC, 208 to 277 VAC Enclosed Relay with HOA Switch, DPST

  • Brand Name: Veris
  • Veris Part#: V421
  • Est. Shipping Date: loading
Application      :      Building Automation Systems
Electrical Wiring Size      :      Coil: 18 AWG (0.25 mm²), Contacts: 12 AWG (4 mm²), HOA: 16 AWG (1.5 mm²)
Hand-Off-Auto      :      Yes
Model      :      V421
Mounting      :      DIN | Wall
Operating Temperature      :      -40 - 104 °F (-40 - 40 °C)
Product Certification      :      UL
Product Type      :      Relay
Range      :      Victory Series
Relay Coil Voltage      :      24 VAC/DC | 208 - 277 VAC
Relay Construction      :      Mechanical
Relay Contact Ratings      :      14 A @ 14 VDC | 8 A @ 28 VDC | 20 A @ 240 VAC
Relay Poles/Throw      :      DPST
Warranty      :      5 years

The Victory 421 DPST power duty enclosed relays combine an industrial strength relay with installation flexibility. Use the nipple mount to attach to any enclosure. One coil input controls the state of two power rated contacts for simultaneous control of two devices or both poles of a single phase load. Each output is enabled with a Handoff-Auto switch for local control. The Victory series does not require a dedicated field enclosure, so it is ideal for retrofit projects. Field selectable high and low voltage coil inputs provide on-site versatility.

  • Nipple mount - can be mounted to any electrical enclosure, easing installation
  • Versatile coil and contact ratings minimize the number of models to choose
  • Protective cover - conceals and protects the HOA switch, reducing the likelihood of tampering
  • Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
  • UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
  • Sleek enclosure - reduces the need for panel space
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/V321_V421_d0321.pdf
  • pdf Installation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/v421_i0c2.pdf
