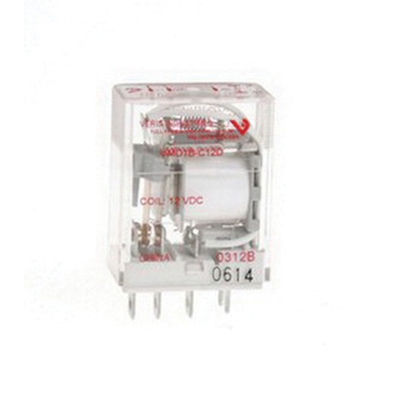

Veris VMD1B-C120A Socket Relay

120 VAC Standard Relay, SPDT

  • Brand Name: Veris
  • Veris Part#: VMD1B-C120A
  • Est. Shipping Date: loading
Application      :      Building Automation Systems
Feature Level      :      Economy Relay
Hand-Off-Auto      :      No
Model      :      VMD1B-C120A
Mounting      :      DIN | Wall
Operating Temperature      :      -40 - 131 °F (-40 - 55 °C)
Product Certification      :      UL | CE | CSA
Product Type      :      Relay
Range      :      VMD Series
Relay Coil Voltage      :      120 VAC
Relay Configuration      :      Socket only
Relay Construction      :      Mechanical
Relay Contact Ratings      :      15 A @ 120 VAC | 15 A @ 28 VDC | 15 A @ 277 VAC
Relay Poles/Throw      :      SPDT
Warranty      :      5 years

The Veris VMD1B-C series are SPDT blade-style relays for socket/DIN mounting. The DIN-rail compatible VBD1B-C sockets feature finger-safe terminals in a slim, attractive design.

  • 2-way mounting - side or DIN rail mounting system, retrofits existing panel mounting and 35 mm DIN rail
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/VMD1B_d0921.pdf
