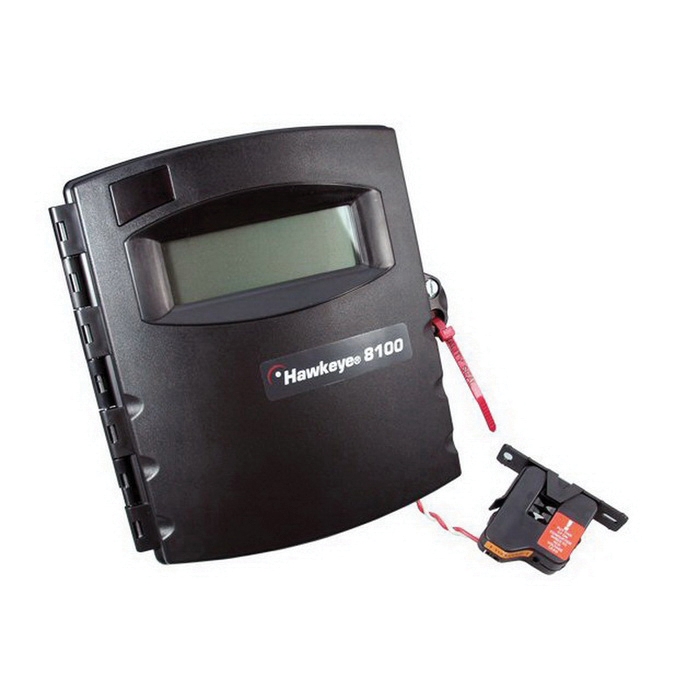

Veris H8163-2400-4-3 KW/KWH Power Meter

2400 A 90 to 300 VAC Line-to-Neutral Input 100 mA at 24 VAC/DC Pulse Output Large Energy Meter, 3-Circuit

  • Brand Name: Veris
  • Veris Part#: H8163-2400-4-3
  • Est. Shipping Date: loading
Accuracy      :      1% System, +/-1.0% of Reading from 2% to 100% of rated current of the CT's
Communication      :      ModBus (RTU) | Pulse kYZ
Dimensions      :      7.6" (193 mm) W x 8.3" (211 mm) L x 3.0" (77 mm) H
Display Type      :      LCD
Environmental Conditions      :      Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m
Frequency Rating      :      50 - 60 Hz
Metering Product Family      :      Energy Meter
Monitored Voltage Range      :      120 - 480 VAC
Mounting      :      Panel Mount
Operating Temperature      :      32 - 122 °F
Output Specifications      :      Pulse: 100 mA at 24 VAC/DC
Product Type      :      Energy Meter, Large CT, 3-Circuit
Range      :      H81XX

The H81xx series energy meters are easy to install and provide exceptional system accuracy, making them ideal for all sub-metering applications. Each meter is factory matched with one to three split-core CTs. The meter/CT pairs are system-calibrated to provide excellent total system accuracies of 1% from 2% to 100% of the amperage rating of the CTs (e.g., 2 to 100 A with 100 A CTs). Matching serial numbers assure that the meter and CT were calibrated together (matching does not apply if using 100 A CTs). The H81xx is easy to install. The split-core CTs virtually eliminate the need to remove electrical conductors, reducing installation time. The meter is also capable of detecting and correcting phase reversal, eliminating the need for concern about CT load orientation. The convenient color coding of the CTs and voltage leads make correct connection simple.

  • LCD display - high resolution backlit LCD display provides clear readings at a distance reduces the risk of data misinterpretation, Back-lighting can be disabled if desired
  • The H81xx can easily be added to a Modbus, BACnet or N2 control system network to report multiple variables including kW, kW-hr, kVAR, PF, Amps and Volts, providing crucial power information at a reduced installation cost
  • Equipment protection - phase-loss alarm
  • Easy connection - H8163 provides a pulse output from 1/10 to 1 pulse per kW-hr for easy connection to existing control or data acquisition systems
