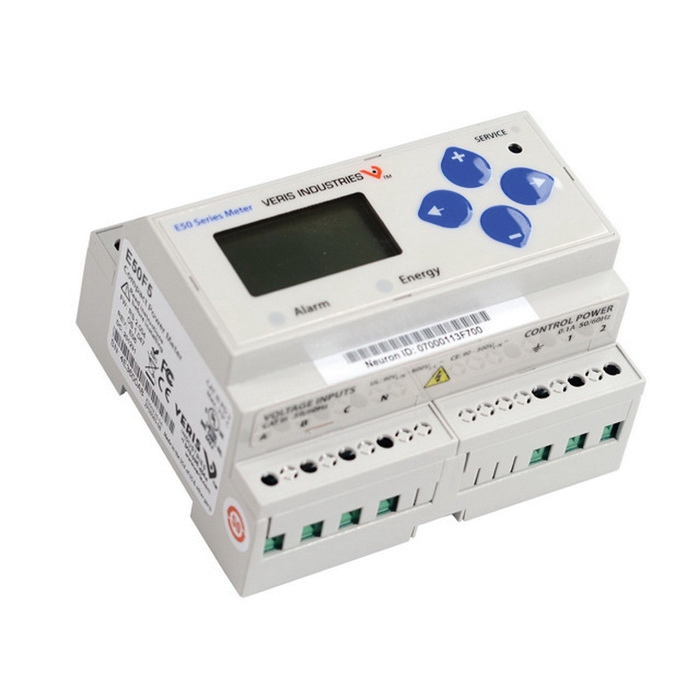

Veris E50F5 Advanced Power Meter

2-Wire LON FT Output 2-Pulse Input Data Logging Enhanced Power and Energy Meter

  • Brand Name: Veris
  • Veris Part#: E50F5
  • Est. Shipping Date: loading
Accuracy      :      +/- 0.2%
Communication      :      LON
Dimensions      :      3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H
Display Type      :      LCD
Environmental Conditions      :      Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m
Frequency Rating      :      50 - 60 Hz
Metering Product Family      :      E50 Power Meter
Monitored Voltage Range      :      90 - 600 VAC
Mounting      :      Din-Rail
Operating Temperature      :      -22 - 158 °F
Output Specifications      :      2-Wire LON FT
Product Type      :      Enhanced Power and Energy Meter
Range      :      E50

The E5x series DIN rail meter combines exceptional performance and easy installation to deliver a cost-effective solution for power monitoring applications. The E5x can be installed on standard DIN rail or surface mounted as needed. The LON output model offer added flexibility for system integration. The data logging capability (E5xx5) protects data in the event of a communications or power failure elsewhere in the system. Combinations of serial communication, pulse output, and phase alarms are provided to suit a wide variety of applications. Additional pulse inputs on E50Fx provide an easy way to incorporate simple flow sensors to track gas, water, steam, or other energy forms using a BACnet or LON system. In this way, a facility administrator can track all energy data, ensuring accuracy in billing and crediting. They are also useful for monitoring loads that use regenerative braking.

  • High reliability
  • Easy installation
  • Wide CT compatibility - compatible with CTs from 5 to 32000 A
  • Data logging - ensures long term data retrieval and safeguards during power failures
  • pdf CE Declaration https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/CE Declaration - E50 and E51 - ECDE5xDoC_-_V1.0.pdf
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/E5x Series_d1021.pdf
  • word Engineering Specs https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/e50f5_e02131.docx
  • pdf Installation guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/e50fx_full_i0f2.pdf
