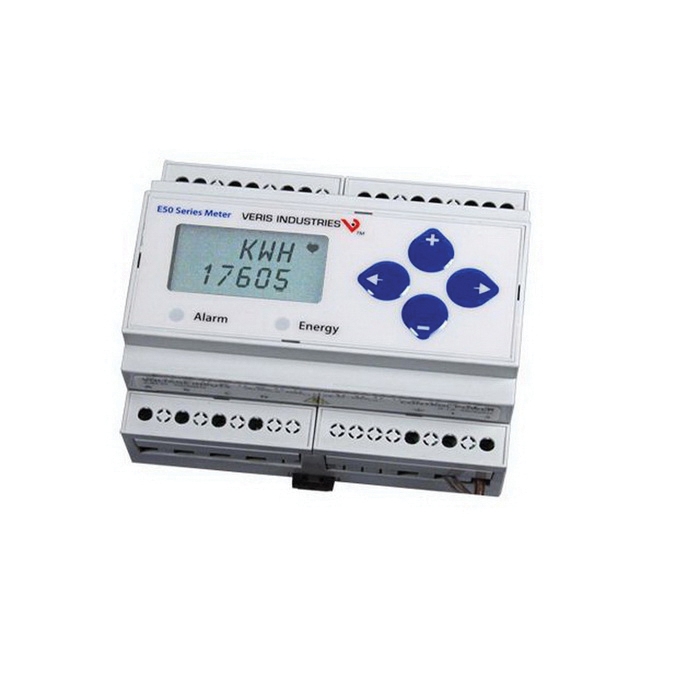

Veris E50C2 Advanced Power Meter

Alarm/Pulse/Modbus RTU Output Enhanced Power and Energy Meter

  • Brand Name: Veris
  • Veris Part#: E50C2
  • Est. Shipping Date: loading
Accuracy      :      +/- 0.2%
Communication      :      ModBus (RTU)
Dimensions      :      3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H
Display Type      :      LCD
Environmental Conditions      :      Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m
Frequency Rating      :      50 - 60 Hz
Metering Product Family      :      E50 Power Meter
Monitored Voltage Range      :      90 - 600 VAC
Mounting      :      Din-Rail
Operating Temperature      :      -22 - 158 °F
Output Specifications      :      30 VAC/VDC, 100 mA Maximum Alarm Output (NC) and Pulse Output (NO), RS-485 2-Wire Modbus RTU
Product Type      :      Enhanced Power and Energy Meter
Range      :      E50

The E5x series DIN rail meter combines exceptional performance and easy installation to deliver a cost-effective solution for power monitoring applications. The E5x can be installed on standard DIN rail or surface mounted as needed. The Modbus output model offer added flexibility for system integration. Combinations of serial communication, pulse output and phase alarms are provided to suit a wide variety of applications. In this way, a facility administrator can track all energy data, ensuring accuracy in billing and crediting. They are also useful for monitoring loads that use regenerative braking.

  • High reliability
  • Easy installation
  • Multiple applications - real energy output and phase loss alarm output
  • Wide CT compatibility - compatible with CTs from 5 to 32000 A
  • pdf CE Declaration https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/CE Declaration - E50 and E51 - ECDE5xDoC_-_V1.0.pdf
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/E5x Series_d1021.pdf
  • word Engineering Specs https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/e50c2_e03111.docx
  • pdf Installation guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/e50b1_cx_full_i0d2.pdf
