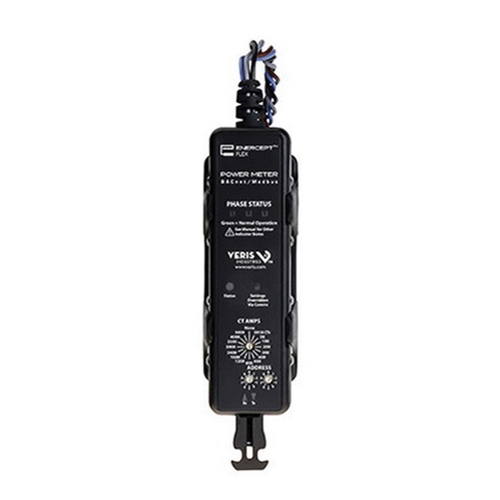

Veris E23C6 Advanced Power Meter

Enercept FLEX 1-Circuit Compact Power and Energy Meter, ANSI North and South America

  • Brand Name: Veris
  • Veris Part#: E23C6
  • Est. Shipping Date: loading
Accuracy      :      0.2%, 0.3V Input Mode, 0.5% Rogowski Input Mode
Communication      :      ModBus (RTU) | BACnet (MS/TP)
Dimensions      :      2.1" (53.08 mm) W x 6.7" (169.33 mm) L x 1.8" (46.28 mm) H
Display Type      :      None
Environmental Conditions      :      Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m
Frequency Rating      :      45 - 65 HZ
Metering Product Family      :      Enercept Flex
Monitored Voltage Range      :      90 - 480 VAC
Mounting      :      Panel Mount
Operating Temperature      :      -22 - 158 °F
Output Specifications      :      Modbus RTU and BACnet MS/TP Protocol
Product Type      :      Compact Power and Energy Meter, 1-Circuit
Range      :      E2X

Enercept FLEX E2x series power and energy meters provide a unique solution for measuring energy data. Designed with the user in mind, the E2x series offers maximum application flexibility for retrofit applications. The Enercept FLEX E2x series is compatible with split-core, solid core and Veris E683x series rope-style Rogowski current transducers (CTs) from 5 to 5000 A, often allowing installers to utilize existing CTs with the meter. Adding to its versatility, the Enercept FLEX E2x series has a wide input range of 90 to 480 VAC, alleviating the need to keep multiple models in stock. The meter's small form factor enables installation in existing panels with limited space, and does not require external mounting or the expense of extra enclosures or conduit runs. Communicating models support auto detection of baud rate, parity and protocol for Modbus RTU and BACnet MS/TP.

  • Wide range of service types compatible with CTs from 5 to 5000 A
  • Easy ordering and stocking - Modbus and BACnet protocols along with uni-directional and bi-directional feature sets in one unit
  • 90 to 480 VAC application versatility with fewer models to stock
  • Easy installation - DIN rail or screw mount options (with included mounting bracket)
  • pdfCE Declaration https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/E2x_09242015.pdf
  • pdfDatasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/e20_d0117.pdf
  • excelE23 BACnet Objects https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/e23_BACnet_Objects.xlsx
  • excelE23 Modbus Register Map https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/E2_ Register_Map.xlsx
  • pdfInstallation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/e20_i0c2.pdf
