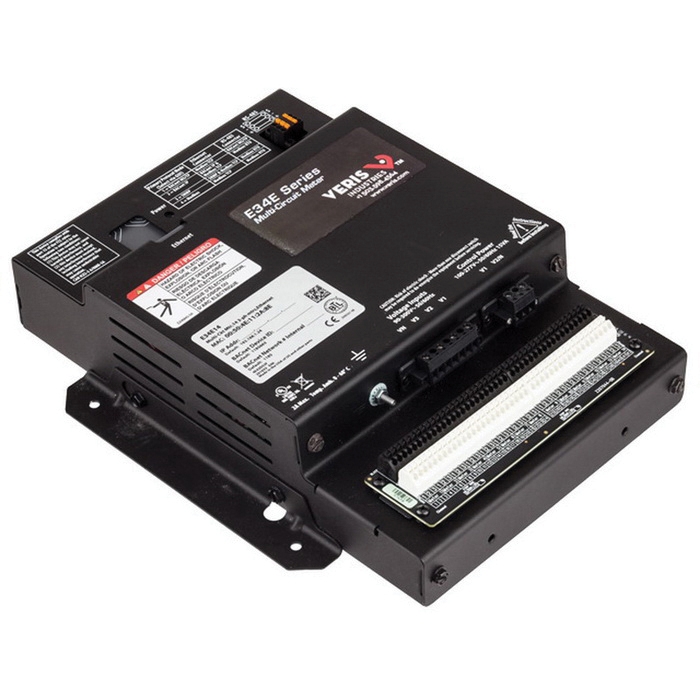

Veris E34E08 Multi-Circuit Power Meter

100 to 277 VAC 15 VA Multi-Circuit Meter, 8-Meter

  • Brand Name: Veris
  • Veris Part#: E34E08
  • Est. Shipping Date: loading
Communication      :      ModBus (RTU) | BACnet (MS/TP) | Modbus (TCP/IP) | BACnet (IP)
CT Count      :      24
Metering Product Family      :      E34 Multi-Circuit Meter
Mounting      :      Panel Mount
Monitored Voltage Range      :      90 - 300 VAC, Line to Neutral
Output Specifications      :      Modbus RTU/BACnet MSTP,2 or 4 wire, RS485. Ethernet RJ45
Product Type      :      Multi-Circuit Meter
Range      :      E34X
Frequency Rating      :      50 - 60 Hz
Accuracy      :      +/-0.5% IEC 62053-21 Class 0.5, ANSI C12.20 Class, +/-0.5% of Reading 90 to 277 V Line-to-Neutral Voltage, +/-0.5% of Reading from 2 to 100% of Full Scale Current
Operating Temperature      :      32 - 140 °F
Dimensions      :      10.0" (253 mm) W x 13.9" (353 mm) L x 2.8" (71 mm) H
Environmental Conditions      :      Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m

The E34x series multi-circuit meters make it easy to add many revenue grade metering points without having to purchase, mount, wire and commission individual energy meters. Simply add a single device with common voltage inputs and communication interface that can measure the current, voltage, power and energy consumption of up to (14) 3-phase circuits with a single board or up to (28) 3-phase circuits with a 2-board configuration. Save on the cost of both equipment and installation. To aid in commissioning, a configuration software tool, an Ethernet discovery tool (for the E34E) and a commissioning guide are available at no cost.

  • Affordable metering points - add many metering points with lower equipment and installation cost than traditional alternatives
  • Common CTs, 1/3 V outputs - eliminates need for shorting blocks and allows long CT lead extensions without compromising accuracy, choose from a range of CT styles and sizes
  • Configure the meters you want - choose 4, 8, 14 or 28 3 ph meters, user-configurable to any combination of 1, 2, 3 ph meters, reconfigure channels as needed to monitor neutral current
  • Revenue grade measurements - ANSI and IEC Class 0.5% provides the accuracy needed for tenant billing applications
  • pdf CE Declaration https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/ECDE34xx_A1-V2.docx.pdf
  • pdf Commissioning Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/E3x Commissioning Guide.pdf
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/E34x_d0522.pdf
  • pdf Installation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/e34_i0c2.pdf
  • excel Point Map https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/E34_Modbus_Pointmap_and_BACnet_Objects-REV_A.xls
  • pdf UKCA Certificate https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/UK_DOC_E34xx_A1-V2.docx.pdf
