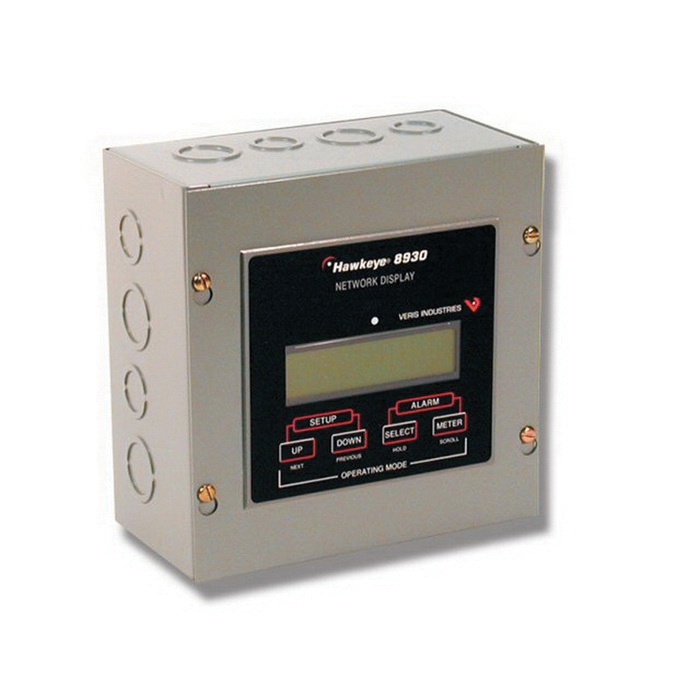

Veris H8936 Network Display

Modbus Network Display with NEMA Box

  • Brand Name: Veris
  • Veris Part#: H8936
  • Est. Shipping Date: loading
Dimensions      :      8.00" (203 mm) W x 8.00" (203 mm) L x 4.20" (108 mm) H
Number of Devices Supported      :      Modbus: 32 device on one network, Auxiliary contact closure input: 1
Operating Temperature      :      0 - 50 deg C
Supply Power      :      120 VAC

The H8936 serves as a display for Modbus data. The product sits in series between downstream metering devices and the upstream master, providing a display of the data passing through it. Registers of the H8238, H8035, H8036, E50Cx and E51Cx energy monitors can be viewed. The E30 and E31 meters are also supported, but the H8936 only presents a subset of the most important data points measured. The H8936 is enclosed in a box for easy installation.

  • Pass-through communications to other Modbus devices
  • Multi-color LED - shows alarm status at a glance
  • Large LCD - 1 x 4 in backlit LCD with adjustable brightness control for easy viewing
  • Monitor a variety of Veris power transducers from a single location
  • Easy keypad setup
  • Other Modbus devices must respond to the "report slave ID" command (11 hr) to allow pass-through communications from upstream network
  • 2-position Euro-style pluggable connector (maximum wire size 12 ga) AC power termination
  • Communication format - 8 data bits, 1 start bit, 1 stop bit
  • 1/4 load transceivers, duplex is UI-selectable 2 or 4-wire, 5-position euro-style pluggable connector RS-485
  • DCE, no handshaking, DB-9 connection, pin 2: transmitted data from display, pin 3: received data to display, pin 5: ground RS-232 (upstream only)
  • Four (meter, up, down, select) number/function
  • Contact closure or pull-to-ground (10 mA maximum) remote alarm
  • Optical to 2500 VAC isolation remote alarm
  • UI-selectable NO or NC sense remote alarm
  • 1 x 4 in visible area, 2 lines x 16 characters per line LCD
  • Green, UI-adjustable brightness in 10-steps backlight
  • Green = normal operation, yellow = warning, red = alarm status (Tri-Color LED)
  • pdf CE Declaration https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/h82-CEDec10071.pdf
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/H8936_H8932_d0321.pdf
  • pdf Engineering Specs https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/h8936e.pdf
  • pdf Installation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/h8932_8936_i0g2.pdf
