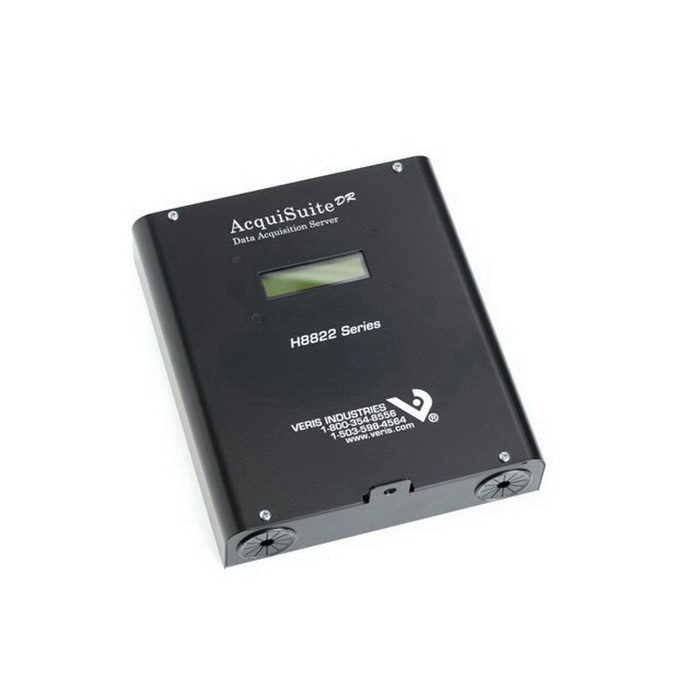

Veris H8822 Data Acquisition System

AcquiSuite 8-Flexible I/O Inputs Data Acquisition System

  • Brand Name: Veris
  • Veris Part#: H8822
  • Est. Shipping Date: loading
Dimensions      :      8.20" (209 mm) W x 9.30" (237 mm) L x 2.00" (51 mm) H
Number of Devices Supported      :      Modbus: 32 device on one network, Analog: 4, Pulse: 4
Supply Power      :      24 VDC or 120 - 240 VAC

The H8822 AcquiSuite data acquisition system is the perfect do-it yourself solution for your energy logging needs. This server combines the flexibility of Ethernet LAN, WAN, or internet communication paths with a low installed cost. It is an ideal device for recording electrical, natural gas, water and other building energy usages. After installation, data from a connected device is time-stamped and stored in nonvolatile memory at user-selected intervals until the next scheduled upload to the SQL database server. Using the built-in phone modem, Ethernet port or cellular modem, the AcquiSuite sends data to the Building Manager Online server or to other third party software providers.

  • Plug and play - install and configure in minutes
  • Flexible data formats - hardware and software provide data in flexible, industry standard formats for databases, spreadsheets, etc
  • LCD display - easy installation and troubleshooting
  • Integrated web server - provides setup and configuration using any standard web browser
  • 8x pulse input, 4 modem activity, Modbus TX/RX, power status LEDs
  • 2 x 16 LCD character, two buttons LCD
  • User selectable 1 to 60 min, default 15 min interval recording
  • 8x, user selectable - 0 to 10 V: min/max/ave/instantaneous; 4 to 20 mA: min/max/ave/instantaneous; pulse: consumption, rate; resistance: min/max/ave/instantaneous; runtime: runtime, status inputs
  • 2x, dry contact 30 VDC, 150 mA maximum outputs
  • 10/100, auto-crossover detection LAN
  • pdf CE Declaration https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/h82-CEDec10071.pdf
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/H8822_d0321.pdf
  • pdf Installation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/h8822_i0c2.pdf
