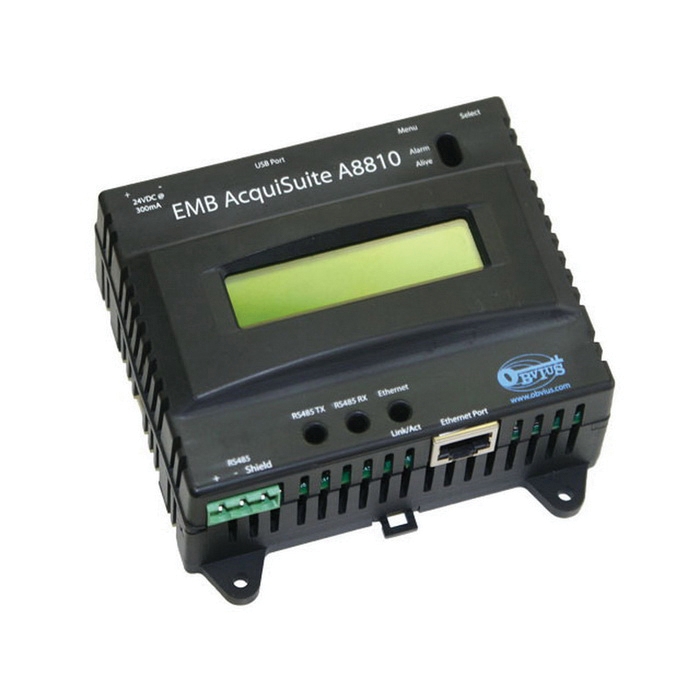

Veris A8810 Data Acquisition System

AcquiSuite Modbus Serial Input EMB Data Acquisition Server

  • Brand Name: Veris
  • Veris Part#: A8810
  • Est. Shipping Date: loading
Dimensions      :      4.25" (108 mm) W x 4.10" (105 mm) L x 1.0" (26 mm)
Number of Devices Supported      :      Modbus: 32 devices on one network
Operating Temperature      :      -30 - 70 deg C
Supply Power      :      24 VDC

The A8810 AcquiSuite data acquisition server for embedded applications allows users to collect energy data from meters and environmental sensors and send it via Modbus communication protocol (wired or wireless using the H8830) to IP-based applications. No software is required. Operation is plug-and-play, and information can be accessed using any web browser. While the A8810 suppports Modbus serial input. The compact housing and industrial temperature range make the A8810 ideal for embedded applications. Reduce development time and speed up integration by collecting and distributing energy data directly from your equipment.

  • Track data in real time - provides the right information for trending, planning, and identifying waste
  • Industrial temperature range (-30 to 70 deg C), perfect for embedded applications, speeds up development and integration of energy data
  • DIN rail mounting - easy installation
  • Alarm notification - for data points above or below target levels, quick notification for optimal performance maintenance
  • Compatible with multiple communication protocols, push or pull data to energy dashboards and software applications for easy system integration
  • RJ45 Ethernet and RS-485 port isolated to 1500 VDC from main board (power and USB not isolated) isolation
  • Ethernet, Modbus TX/RX, power, alarm LEDs
  • 2 x 16 LCD character, two push buttons console
  • 1 to 60 min, user selectable (default 15 min) interval recording
  • RS-485 Modbus, supports up to 32 external devices (expandable) serial port input
  • RJ45 10/100 Ethernet, auto polarity LAN
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/A7810_A8810_d1021.pdf
  • pdf Installation Guide https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/a8810_i.pdf
