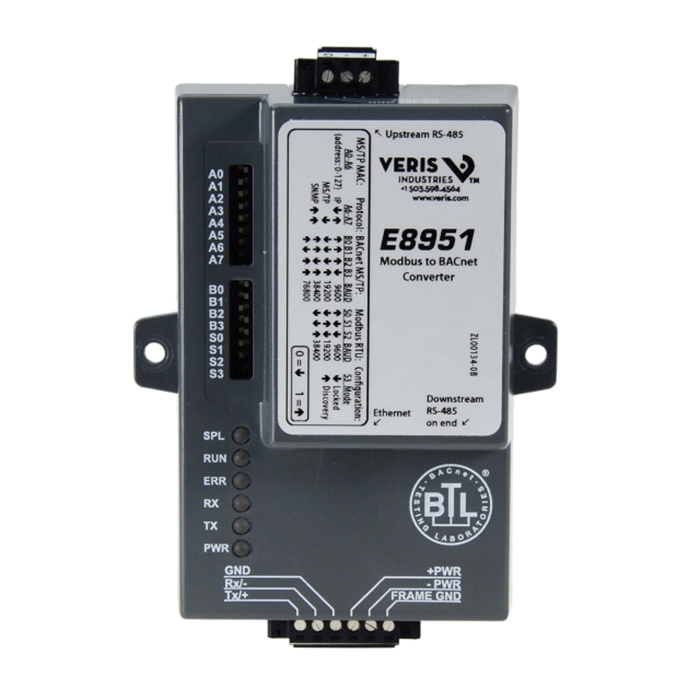

Veris E8951 BACnet Converter

Modbus-to-BACnet Protocol Converter

  • Brand Name: Veris
  • Veris Part#: E8951
  • Est. Shipping Date: loading
Operating Temperature      :      -40 - 60 deg C
Dimensions      :      2.90" (74 mm) W x 5.10" (129 mm) L x 1.60" (41 mm) H
Number of Devices Supported      :      BACnet: Up to 32 devices or 10k points, Modbus: 32, SNMP: 1 84 channel or 2 42 channel BCPM
Supply Power      :      9 - 30 VDC or 12 - 24 VAC

The E8951 Modbus-to-BACnet protocol converter enables easy integration of a broad selection of Veris meters with Building Automation Systems via BACnet protocol. When networked, the E8951 detects supported Modbus meters and gives them a unique BACnet Device ID and full set of measurement data and configuration objects. Simply select the desired protocol settings using DIP switches and the integral web server and the supported Veris Modbus meters are available as fully-supported BACnet devices.

  • Enables access to most Veris Modbus RTU meters via standard building automation protocols - BACnet MS/TP, BACnet IP, Modbus TCP and SNMP
  • Supports BACnet IP and Modbus TCP access simultaneously
  • Extensive data collection - each E8951 can support over 10000 BACnet measurement points (32 m maximum)
  • Simultaneously supports mixed meter types (with common baud rate), versatility in the field
  • Easy setup - automatically detects supported meters and configures BACnet objects, no programming or manual mapping of Modbus points required
  • Internal, 120 Ohm line termination downstream
  • Internal line polarization downstream
  • BACnet mode - up to 32 devices (10000+ total BACnet data objects) SNMP mode - One 84-channel E30A/E31A or two 42-channel E30A per E8951 Modbus mode - 32 devices
  • Application flexibility supports a broad range of Veris meters - H8035, H8036, H8163 with H8163-CB, H8238, H8436, H8437, E50C2, E51C2, E50C3, E51C3, E30xxxx, E31xxxx, E34xxx and U013-0010/0011 I/O modules
  • Modbus RTU downstream, BACnet IP, Modbus TCP, SNMP upstream ethernet, BACnet MS/TP or Modbus RTU upstream serial
