| Application | : | Flow |
| Display Type | : | LCD |
| Field Programmable | : | No |
| Fitting Material | : | Polymer |
| Fitting Size | : | 1" BSP |
| Fitting Type | : | Threaded |
| Flow Measurement Accuracy | : | ±5% |
| Flow Measurement Range | : | 3 - 30 GPM (11 - 113 LPM) |
| Flow Sensor Type | : | Turbine |
| Measurement Type | : | Flow |
| Medium | : | Water based liquids |
| Model | : | 02N12LM |
| Operating Fluid Temperature | : | 14 - 130 °F (-10 - 55 °C) |
| Operating Temperature | : | 14 - 130 °F (-10 - 55 °C) |
| Output Specifications | : | Scaled Pulse |
| Outputs | : | Pulse output |
| Pipe Material | : | Copper | Polymer | Steel | Stainless Steel |
| Product Certification | : | CE |
| Product Type | : | Sensor |
| Range | : | 02 Series |
| Totalizer Quantities | : | 2 |
| Totalizer Resettable | : | Yes |
| Warranty | : | 2 years |

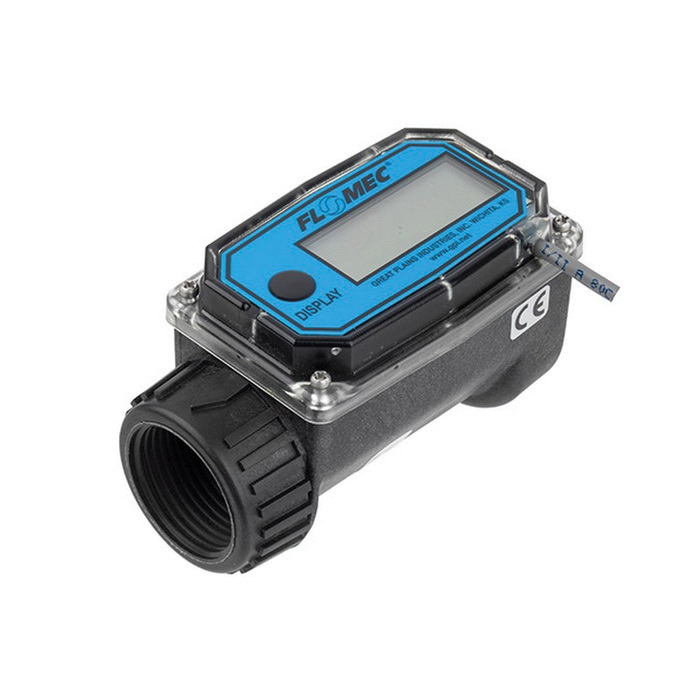

The FLOMEC 02 Series is a lightweight, accurate and reliable turbine meter.
- Complete meter - includes turbine assembly, microprocessor and LCD readout
- Totalization - batch (resettable to measure flow during a single use) and cumulative (non-resettable, to provide continuous measurement)
- Easy installation - lightweight, compact design
- Battery powered - display powered by (2) AAA alkaline batteries that are easy to replace, with the meter installed
- Virtually maintenance-free
- One pulse per gallon or liter scaling
- Ceramic bearings, tungsten carbide shaft, nylon rotor, 316 stainless steel rings, ferrite signal generator wetted materials
