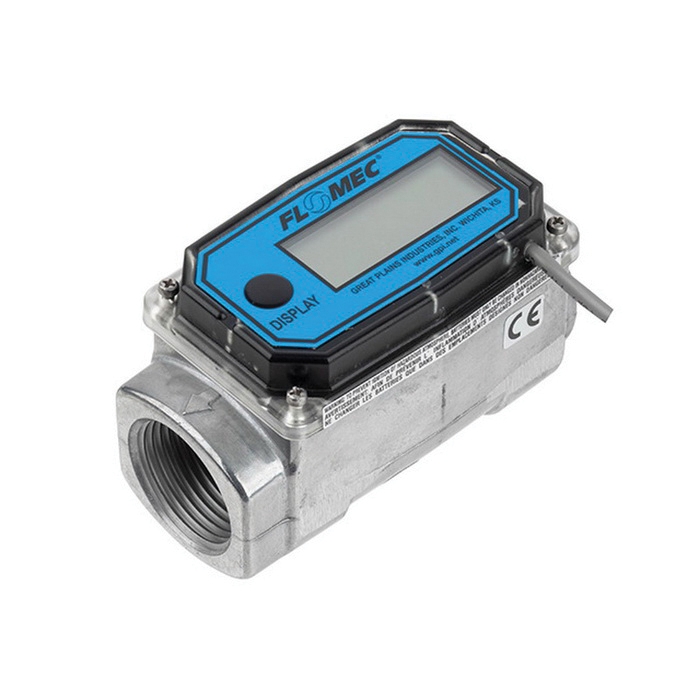

Flomec FLO-02A12LM All-In-One Flow Meter

FLOMEC Aluminum 1 in Female BSPT Electronic Flow Meter, 11 to 113 Lpm

  • Brand Name: Veris
  • Veris Part#: FLO-02A12LM
  • Est. Shipping Date: loading
Application      :      Flow
Display Type      :      LCD
Field Programmable      :      No
Fitting Material      :      Aluminum
Fitting Size      :      1" BSP
Fitting Type      :      Threaded
Flow Measurement Accuracy      :      ±5%
Flow Measurement Range      :      3 - 30 GPM (11 - 113 LPM)
Flow Sensor Type      :      Turbine
Measurement Type      :      Flow
Medium      :      Water based liquids
Model      :      02A12LM
Operating Fluid Temperature      :      14 - 130 °F (-10 - 55 °C)
Operating Temperature      :      14 - 130 °F (-10 - 55 °C)
Output Specifications      :      Scaled Pulse
Outputs      :      Pulse output
Pipe Material      :      Copper | Polymer | Steel | Stainless Steel
Product Certification      :      CE
Product Type      :      Sensor
Range      :      02 Series
Totalizer Quantities      :      2
Totalizer Resettable      :      Yes
Warranty      :      2 years

The FLOMEC 02 Series is a lightweight, accurate and reliable turbine meter.

  • Complete meter - includes turbine assembly, microprocessor and LCD readout
  • Totalization - batch (resettable to measure flow during a single use) and cumulative (non-resettable, to provide continuous measurement)
  • Easy installation - lightweight, compact design
  • Battery powered - display powered by (2) AAA alkaline batteries that are easy to replace, with the meter installed
  • Virtually maintenance-free
  • One pulse per gallon or liter scaling
  • Ceramic bearings, tungsten carbide shaft, nylon rotor, 316 stainless steel rings, ferrite signal generator wetted materials
  • pdfDatasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/02_series_d0718.pdf
