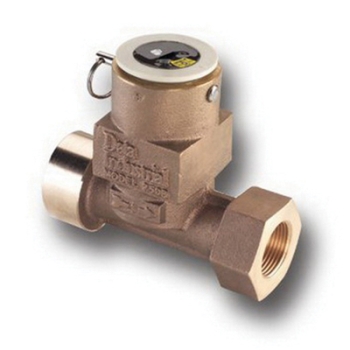

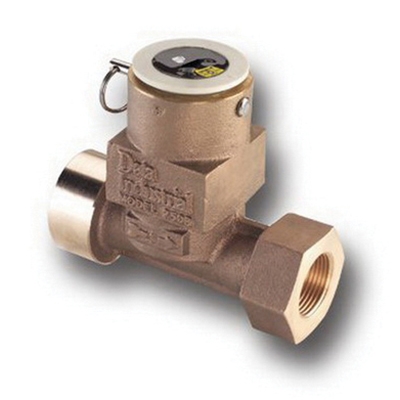

Badger BGR-8250BR1205-1211 Flow Sensor

Liquid Flow Sensor with Brass Tee, 1-1/4 in

  • Brand Name: Veris
  • Veris Part#: BGR-8250BR1205-1211
  • Est. Shipping Date: loading
Application      :      Flow
Fitting Material      :      Brass | Stainless Steel | Polymer
Fitting Size      :      1.25" NPT
Fitting Type      :      Threaded
Flow Measurement Accuracy      :      ±1%
Flow Measurement Range      :      4.5 - 152 GPM (17 - 575 LPM)
Flow Measurement Repeatability      :      ±0.7%
Flow Sensor Type      :      Impeller
Hot-Tap Option      :      No
Medium      :      Water based liquids
Operating Fluid Temperature      :      Rated 221 °F (105 °C) continuous
Outputs      :      Frequency output
Pipe Material      :      Copper | Polymer | Steel | Stainless Steel
Product Certification      :      CE Equipment Class A EN 50082-2 and EN 55021
Product Type      :      Sensor
Range      :      250 Series
Warranty      :      1 year

Metal tee-style liquid flow sensor with cast brass housing fits 1/2 to 1-1/2 in NPT. These sensors are accurate, even at low flow rates. Use in conjunction with a flow monitor or transmitter for a complete flow monitoring system.

  • Signal can travel up to 2000 ft between the sensor and the display unit without the need for amplification
  • Operation and repeatability even at low flow rates
  • Six-bladed impeller design with a proprietary, non-magnetic sensing mechanism for high accuracy and repeatability, forward-swept impeller is less prone to fouling by water-borne debris, reliable performance with minimal downtime
  • No amplification - signal can travel up to 2000 ft between the sensor and the display unit without the need for amplification
  • PPS electronics housing
  • Standard electronics
  • Wetted materials - pennlon bearing, nylon impeller, tungsten carbide shaft, EPDM O-rings
  • pdf Datasheet https://www.veris.com//ASSETS/DOCUMENTS/ITEMS/EN/220_228_d0221.pdf
