| Application | : | Flow |
| Display Type | : | LCD |
| Field Programmable | : | Yes |
| Fitting Material | : | Polymer |
| Fitting Size | : | 2" BSP |
| Fitting Type | : | Threaded |
| Flow Measurement Accuracy | : | ±0.5% |
| Flow Measurement Range | : | 2.5 - 150 GPM (9.5 - 568 LPM) |
| Flow Measurement Repeatability | : | ±0.015 GPM |
| Flow Sensor Type | : | Electromagnetic |
| IP Protection | : | IP68 (NEMA 6P) |
| Measurement Type | : | Flow |
| Medium | : | Water based liquids |
| Operating Fluid Temperature | : | 32 - 180 °F (0 - 82 °C) |
| Operating Temperature | : | 32 - 180 °F (0 - 82 °C) |
| Output Specifications | : | Scaled Pulse | 4 - 20 mA |
| Outputs | : | Analog output | Pulse output |
| Pipe Material | : | Copper | Polymer | Steel | Stainless Steel |
| Product Certification | : | CE | NSF | CSA |
| Product Type | : | Sensor |
| Range | : | QSE Series |
| Totalizer Quantities | : | 2 |
| Totalizer Resettable | : | Yes |
| Warranty | : | 2 years |

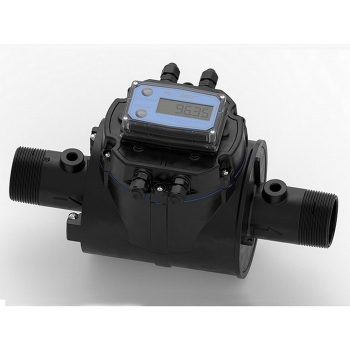

The QSE Mag series is a dependable, highly accurate electromagnetic flow meter designed for flow and usage monitoring in commercial applications. The Noryl housing and flow tube offer a lightweight, easy-to-install mag meter that is resistant to heat (210 deg F) and is compatible with many water-based liquid solutions. The QSE Mag meter monitors flow rate and total flow in a wide variety of applications including HVAC and water reclamation.
- Economical - low investment and operating costs
- Slightly modified bore permits unobstructed flow, minimizes flow disturbances and straight pipe requirements
- Highly accurate
- Durable - non-intrusive, no moving parts to wear out, maintenance, repair costs low and tolerates high flows without damage
- Wireless configure and monitor meter through android app
